RAA2116054GP3#JA0

RAA2116054GP3#JA0 Description

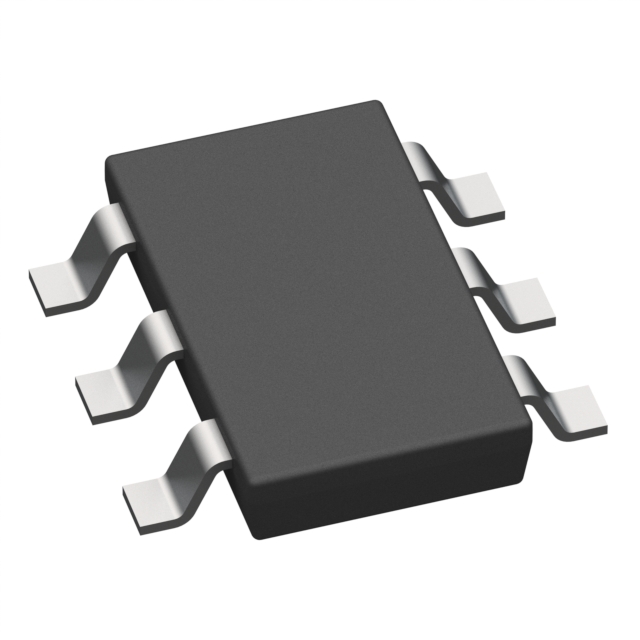

The RAA2116054GP3#JA0 is a high-performance, adjustable DC switching voltage regulator designed and manufactured by Renesas Electronics Corporation. This IC is part of the DC Switching Voltage Regulators category and is specifically designed for applications requiring precise voltage regulation and low power consumption. With its compact TSOT23-6 package, it is ideal for space-constrained designs. The RAA2116054GP3#JA0 offers a wide input voltage range of 4.5V to 60V and provides an adjustable output voltage from 0.8V to 57V. It features a maximum output current of 500mA and operates at a high switching frequency of 450kHz, ensuring efficient power conversion and minimal electromagnetic interference.

RAA2116054GP3#JA0 Features

• Adjustable Output Voltage: The RAA2116054GP3#JA0 offers a wide adjustable output voltage range from 0.8V to 57V, making it suitable for various applications with different voltage requirements.
• High Input Voltage Range: With an input voltage range of 4.5V to 60V, this IC can handle a wide range of input sources, providing flexibility in system design.
• 450kHz Switching Frequency: The high switching frequency reduces the size of external components, allowing for more compact designs.
• 500mA Output Current: The RAA2116054GP3#JA0 can deliver up to 500mA of output current, making it suitable for applications requiring moderate power levels.
• Positive Output Configuration: The positive output configuration simplifies the design process and reduces the need for additional components.
• Surface Mount Technology: The TSOT23-6 package allows for surface mounting, making it ideal for PCB designs with limited space.
• RoHS3 Compliance: The RAA2116054GP3#JA0 is compliant with the RoHS3 directive, ensuring environmental sustainability and regulatory compliance.
• REACH Unaffected Status: This IC is not affected by the REACH regulation, ensuring uninterrupted supply and compatibility with European markets.

RAA2116054GP3#JA0 Applications

The RAA2116054GP3#JA0 is ideal for various applications where precise voltage regulation and low power consumption are critical. Some specific use cases include:

1. Portable Electronics: Due to its low power consumption and compact size, this IC is suitable for powering portable devices such as smartphones, tablets, and wearables.
2. Industrial Control Systems: The wide input voltage range and adjustable output make it ideal for industrial control systems that require stable power supply in varying conditions.
3. Automotive Applications: The RAA2116054GP3#JA0 can be used in automotive systems where a wide input voltage range is necessary, such as infotainment systems and sensor power supplies.
4. Medical Devices: The precise voltage regulation and low power consumption make it suitable for powering medical devices that require stable and efficient power supplies.

Conclusion of RAA2116054GP3#JA0

The RAA2116054GP3#JA0 is a versatile and high-performance DC switching voltage regulator from Renesas Electronics Corporation. Its adjustable output voltage, wide input voltage range, and compact package make it an ideal choice for various applications requiring precise voltage regulation and low power consumption. With its RoHS3 compliance and REACH unaffected status, this IC ensures environmental sustainability and regulatory compliance. The RAA2116054GP3#JA0 is a reliable and efficient solution for designers looking to optimize their power management systems.
