BD6873KN-E2

BD6873KN-E2 Description

The BD6873KN-E2 is a high-performance motor driver IC designed by ROHM Semiconductor, a leading manufacturer in the electronics industry. This IC is specifically tailored for driving bipolar stepper motors and brushed DC motors, making it an ideal solution for a variety of applications, particularly in the camera industry. The BD6873KN-E2 features a half-bridge output configuration with a maximum output current of 500mA, ensuring robust performance and reliability.

BD6873KN-E2 Features

• Output Current: The BD6873KN-E2 can handle an output current of up to 500mA, providing sufficient power for driving small to medium-sized motors.
• Output Configuration: It features a half-bridge configuration, which allows for efficient control of the motor's direction and speed.
• Voltage Range: The IC operates within a supply voltage range of 2.5V to 5.5V, offering flexibility and compatibility with various power sources.
• Technology: Utilizing DMOS technology, the BD6873KN-E2 ensures high efficiency and low power consumption.

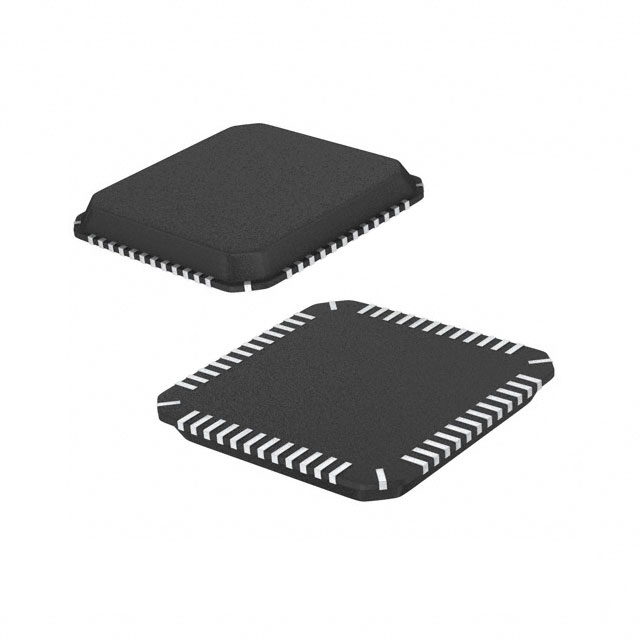

• Mounting Type: The surface mount package (48QFN) makes it suitable for compact and space-constrained designs.
• Compliance: The BD6873KN-E2 is REACH unaffected and ROHS3 compliant, ensuring it meets the highest environmental and safety standards.
• Moisture Sensitivity Level: With an MSL of 3 (168 hours), it is suitable for applications requiring a certain level of moisture resistance.
• Interface: The serial interface allows for easy communication and control, simplifying integration into existing systems.
• Package: The tape & reel (TR) packaging ensures ease of handling and assembly in manufacturing processes.

BD6873KN-E2 Applications

The BD6873KN-E2 is particularly well-suited for applications in the camera industry, where precise motor control and compact design are crucial. Its ability to drive both bipolar stepper motors and brushed DC motors makes it versatile for various motor types and configurations. The IC's low power consumption and high efficiency are advantageous for battery-powered devices, ensuring longer operational time without sacrificing performance.

Conclusion of BD6873KN-E2

The BD6873KN-E2 is a robust and versatile motor driver IC that offers a comprehensive set of features tailored for driving bipolar stepper and brushed DC motors. Its compatibility with a wide range of supply voltages, combined with its low power consumption and high efficiency, makes it an ideal choice for applications in the camera industry and other compact, power-sensitive environments. While the product is now obsolete, its legacy as a reliable and high-performance motor driver remains significant. For engineers and designers seeking a reliable motor driver solution, the BD6873KN-E2 stands out as a notable option in its category.
