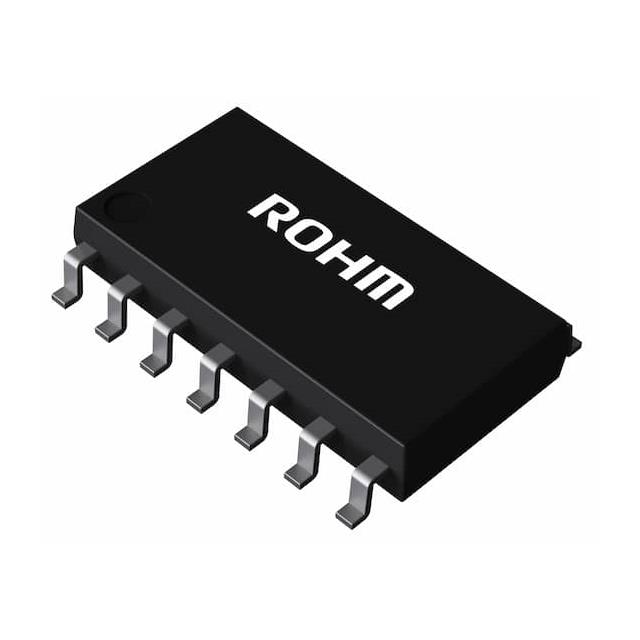

BD7284F-LBE2

BD7284F-LBE2 Description

The BD7284F-LBE2 is a high-performance, low-noise, rail-to-rail operational amplifier designed by Rohm Semiconductor, a leading manufacturer in the electronics industry. This quad-channel amplifier is ideal for applications requiring high precision and low power consumption. The BD7284F-LBE2 operates with a supply voltage range of 2.5 V to 5.5 V, making it suitable for a wide range of power supply configurations. It features a gain bandwidth product of 7 MHz, providing excellent performance for high-frequency applications. With a slew rate of 10 V/µs, the amplifier ensures fast signal processing and minimal distortion.

BD7284F-LBE2 Features

• Low Noise and High Precision: The BD7284F-LBE2 offers an ultra-low input bias current of 0.5 pA and an input offset voltage of just 10 µV, ensuring high precision and minimal signal interference.
• Rail-to-Rail Operation: This feature allows the amplifier to operate with input and output signals that extend to the supply rails, maximizing dynamic range and improving signal integrity.
• High Output Current: Each channel can deliver up to 50 mA of output current, making it suitable for driving various loads without compromising performance.
• Low Power Consumption: The amplifier operates with a supply current of only 6.8 mA, making it ideal for battery-powered and low-power applications.
• Surface Mount Technology: The BD7284F-LBE2 is available in a surface mount package, facilitating easy integration into compact and high-density designs.
• Moisture Sensitivity Level (MSL) 1: This indicates that the component is not moisture-sensitive, ensuring reliability and longevity in various environmental conditions.
• Compliance and Packaging: The BD7284F-LBE2 is classified under ECCN EAR99 and HTSUS 8542.33.0001, and it is packaged in tape and reel (TR) format, suitable for automated assembly processes.

BD7284F-LBE2 Applications

The BD7284F-LBE2 is versatile and can be applied in a variety of electronic systems where high performance and low power consumption are critical. Some specific use cases include:

• Precision Signal Conditioning: Ideal for applications requiring high precision and low noise, such as medical devices, precision instrumentation, and high-resolution data acquisition systems.
• Battery-Powered Devices: Suitable for portable electronics and IoT devices where low power consumption is essential to extend battery life.
• High-Frequency Signal Processing: The 7 MHz gain bandwidth product and 10 V/µs slew rate make it suitable for applications involving high-frequency signals, such as audio processing and communication systems.
• Automotive Electronics: The robustness and reliability of the BD7284F-LBE2 make it suitable for automotive applications, including sensor interfaces and control systems.

Conclusion of BD7284F-LBE2

The BD7284F-LBE2 from Rohm Semiconductor is a standout choice for engineers seeking a high-performance, low-noise operational amplifier with rail-to-rail capabilities. Its low power consumption, high precision, and robust design make it an ideal solution for a wide range of applications, from precision signal conditioning to battery-powered devices. The BD7284F-LBE2’s unique features, such as its ultra-low input bias current and high output current, provide significant advantages over similar models, ensuring superior performance and reliability. Whether used in medical devices, automotive systems, or high-frequency signal processing, the BD7284F-LBE2 delivers exceptional performance and value.
