ROHM Semiconductor

BM6202FS-E2

BM6202FS-E2 Description

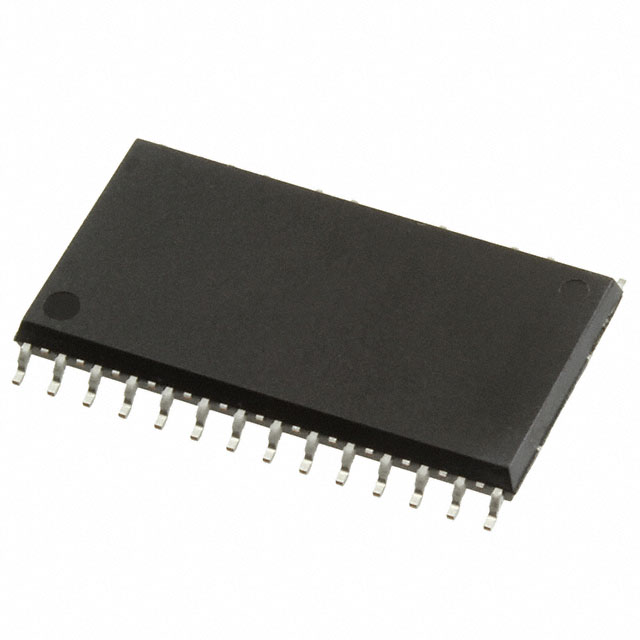

The BM6202FS-E2 is a half-bridge driver IC designed by ROHM Semiconductor, a leading manufacturer in the electronics industry. This device is specifically tailored for applications requiring robust power management and efficient control of inductive loads. The BM6202FS-E2 features a half-bridge output configuration with a peak output current of 2.5A, making it suitable for driving AC motors and other inductive loads.

The device operates within a supply voltage range of 13.5V to 16.5V and can handle a maximum load voltage of 400V. It employs Power MOSFET technology, ensuring high efficiency and low power consumption. The BM6202FS-E2 is designed with a surface mount package, making it ideal for compact and space-constrained applications. It features a typical on-state resistance (Rds On) of 2.7Ohm, which minimizes power loss and enhances overall system efficiency.

BM6202FS-E2 Features

The BM6202FS-E2 offers several unique features that set it apart from similar models in the market. Key features include:

• Bootstrap Circuit: This feature allows the device to operate with a wide range of input voltages, ensuring reliable performance across various applications.
• Status Flag: The status flag provides real-time feedback on the operational status of the device, facilitating effective monitoring and control.
• Fault Protection: The BM6202FS-E2 includes comprehensive fault protection mechanisms such as current limiting, over-temperature protection, and under-voltage lockout (UVLO). These features safeguard the device and connected components from potential damage due to abnormal operating conditions.
• Logic Interface: The device features a logic interface, enabling seamless integration with other electronic systems and controllers.
• Compliance: The BM6202FS-E2 is REACH unaffected and ROHS3 compliant, ensuring it meets stringent environmental and safety standards. It also has a Moisture Sensitivity Level (MSL) of 3 (168 Hours), making it suitable for various manufacturing processes.

BM6202FS-E2 Applications

The BM6202FS-E2 is ideal for applications that require efficient control of inductive loads, such as AC motors. Its robust design and comprehensive fault protection mechanisms make it suitable for use in:

• AC Motor Control: The device's ability to handle high peak currents and its comprehensive fault protection features make it ideal for driving AC motors in various industrial and consumer applications.
• Power Management Systems: The BM6202FS-E2 can be used in power management systems where efficient control of power delivery and load management is critical.
• Automotive Applications: The device's robustness and compliance with environmental standards make it suitable for use in automotive applications where reliability and safety are paramount.

Conclusion of BM6202FS-E2

The BM6202FS-E2 is a versatile and reliable half-bridge driver IC designed for efficient control of inductive loads. Its unique features, including the bootstrap circuit, status flag, and comprehensive fault protection mechanisms, provide significant advantages over similar models. The device's compliance with environmental and safety standards ensures it meets the requirements of modern electronics manufacturing processes.

While the BM6202FS-E2 is not recommended for new designs, it remains a valuable component for existing systems and applications where its robust performance and reliability are essential. For those seeking a high-performance half-bridge driver with comprehensive protection features, the BM6202FS-E2 is an excellent choice.
