ROHM Semiconductor

BU4S66-TR

BU4S66-TR Description

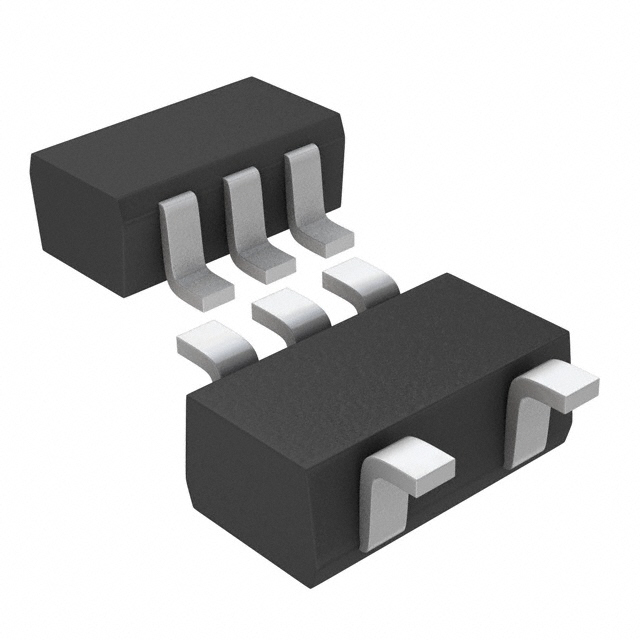

The BU4S66-TR is a single-pole single-throw (SPST) normally open analog switch designed by Rohm Semiconductor. This device is housed in a surface-mount SMP5 package and is available in a tape and reel format (TR). Despite its obsolete status, the BU4S66-TR remains a viable option for applications requiring a reliable and compact analog switch solution. The device operates within a supply voltage range of 3V to 16V, offering flexibility in power supply requirements. It features a maximum leakage current of 300nA and a -3dB bandwidth of 30MHz, ensuring high performance in signal switching applications. The on-state resistance is a maximum of 160Ω, and the channel capacitance is 10pF, contributing to its efficient signal handling capabilities.

BU4S66-TR Features

• Low Leakage Current: With a maximum leakage current of 300nA, the BU4S66-TR minimizes unwanted signal flow when the switch is off, ensuring high signal integrity.
• Wide Operating Voltage Range: The device operates within a 3V to 16V supply voltage range, making it suitable for a variety of power supply configurations.
• High Bandwidth: The -3dB bandwidth of 30MHz allows for efficient switching of high-frequency signals, making it ideal for applications requiring fast signal processing.
• Low On-State Resistance: The maximum on-state resistance of 160Ω ensures minimal signal attenuation when the switch is on, preserving signal strength.
• Compact Surface-Mount Package: The SMP5 package is designed for surface-mount technology, providing a space-efficient solution for modern circuit board designs.
• ROHS3 Compliant: The BU4S66-TR meets ROHS3 compliance, ensuring it adheres to environmental standards and regulations.
• Moisture Sensitivity Level 1: With an MSL of 1, the device is suitable for unlimited storage conditions, reducing the risk of moisture-related damage.

BU4S66-TR Applications

The BU4S66-TR is well-suited for a variety of applications where reliable signal switching is required. Some specific use cases include:

• Audio Signal Routing: The low on-state resistance and high bandwidth make it ideal for switching audio signals in consumer electronics, ensuring minimal signal degradation.
• Data Acquisition Systems: In systems where multiple signals need to be routed to a single input, the BU4S66-TR can efficiently switch between signals without significant loss of signal quality.
• Medical Equipment: The device's compact size and high reliability make it suitable for medical devices where space is limited and signal integrity is critical.
• Industrial Control Systems: The wide operating voltage range and robust performance characteristics make it a reliable choice for industrial applications where environmental conditions can be harsh.

Conclusion of BU4S66-TR

The BU4S66-TR from Rohm Semiconductor is a versatile analog switch that offers a combination of high performance and compact design. Despite its obsolete status, its technical specifications and features make it a reliable choice for various applications requiring efficient signal switching. The low leakage current, wide operating voltage range, and high bandwidth ensure that it can handle a variety of signals with minimal degradation. Its compliance with environmental standards and robust moisture sensitivity level further enhance its suitability for diverse applications. Whether used in audio systems, data acquisition, medical devices, or industrial control systems, the BU4S66-TR provides a reliable and efficient solution for signal routing needs.
