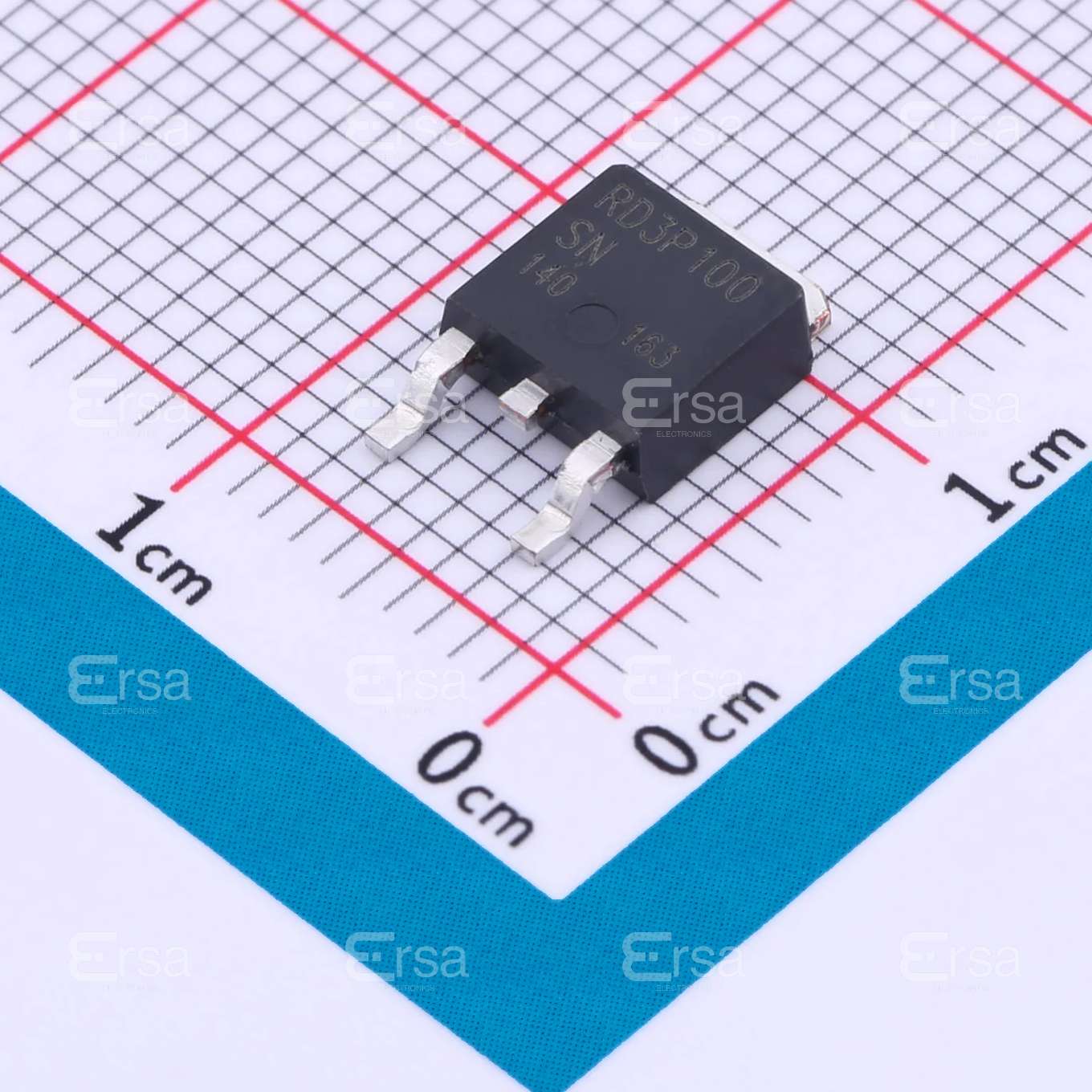

RD3P100SNTL1

RD3P100SNTL1 Description

The RD3P100SNTL1 from ROHM Semiconductor is an N-channel MOSFET designed for high-efficiency power switching applications. With a 100V drain-to-source voltage (Vdss) and 10A continuous drain current (Id), it offers robust performance in demanding environments. The device features a low on-resistance (Rds(on)) of 133mΩ at 5A, 10V, ensuring minimal conduction losses. Its TO-252 (DPAK) surface-mount package provides excellent thermal dissipation, supporting a maximum power dissipation of 20W (Tc). The MOSFET is optimized for 4V to 10V gate drive voltage, making it compatible with standard logic-level and higher-voltage gate drivers.

RD3P100SNTL1 Features

• Low Gate Charge (Qg): 18nC at 10V reduces switching losses, enhancing efficiency in high-frequency applications.
• Fast Switching Performance: Low input capacitance (Ciss) of 700pF at 25V ensures rapid turn-on/off transitions.
• High Voltage Tolerance: ±20V maximum gate-source voltage (Vgs) provides robustness against voltage spikes.
• Reliable Construction: ROHS3 compliant and REACH unaffected, meeting stringent environmental standards.
• Thermal Efficiency: MSL 1 (Unlimited) moisture sensitivity and surface-mount design simplify assembly while maintaining reliability.

RD3P100SNTL1 Applications

• Power Supplies: Ideal for DC-DC converters, SMPS, and voltage regulation modules due to low Rds(on) and high efficiency.
• Motor Control: Suitable for H-bridge drivers, brushed/brushless motor drives, benefiting from fast switching and high current handling.
• Automotive Systems: Used in LED drivers, battery management, and load switches where high voltage and reliability are critical.
• Industrial Electronics: Deployed in solenoid controls, inverters, and power distribution systems requiring robust thermal performance.

Conclusion of RD3P100SNTL1

The RD3P100SNTL1 stands out as a high-performance N-channel MOSFET with low conduction losses, fast switching, and excellent thermal management. Its 100V rating, 10A current capability, and compact TO-252 package make it a versatile choice for power electronics, automotive, and industrial applications. Compared to similar models, its optimized gate charge and low Rds(on) provide superior efficiency, while ROHM's quality assurance ensures long-term reliability. Engineers seeking a cost-effective, high-efficiency MOSFET for medium-power switching will find this device an optimal solution.
