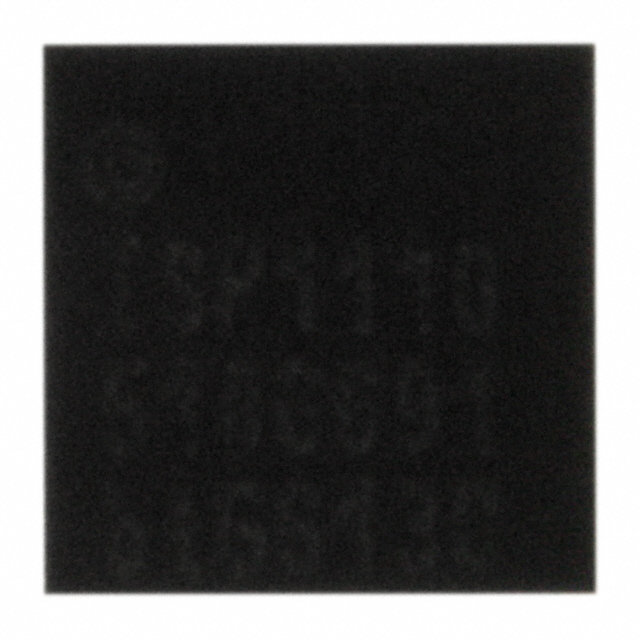

ISP1110VHTS

ISP1110VHTS Description

The ISP1110VHTS is a high-performance half-duplex transceiver designed by ST-Ericsson Inc. This IC transceiver is tailored for applications requiring robust communication capabilities with a data rate of up to 12 Mbps. The device features a single driver and receiver, ensuring efficient signal transmission and reception. It is designed for surface mount applications, making it suitable for compact and space-constrained designs. The ISP1110VHTS operates within a supply voltage range of 4V to 5.5V, providing flexibility in power supply requirements. Additionally, it adheres to the USB 2.0 protocol, ensuring compatibility with a wide range of modern devices and systems.

ISP1110VHTS Features

• Half-Duplex Operation: The ISP1110VHTS operates in half-duplex mode, allowing for efficient communication in applications where simultaneous bidirectional data transfer is not required. This mode of operation reduces complexity and power consumption compared to full-duplex transceivers.
• Receiver Hysteresis: The device features a receiver hysteresis of 700 mV, which enhances signal integrity and reliability by reducing the likelihood of noise-induced errors.
• Surface Mount Technology: The surface mount mounting type ensures ease of integration into modern PCB designs, facilitating automated assembly processes and reducing overall footprint.
• Wide Supply Voltage Range: The ISP1110VHTS supports a supply voltage range of 4V to 5.5V, making it adaptable to various power supply configurations and ensuring robust performance across different operating conditions.
• USB 2.0 Protocol: Compliance with the USB 2.0 protocol ensures seamless integration with contemporary USB-based systems, enabling high-speed data transfer and compatibility with a broad range of devices.
• Moisture Sensitivity Level (MSL) 1: The device has an MSL of 1, indicating unlimited storage time in a controlled environment, which enhances reliability and reduces the risk of moisture-related failures.
• Package Type: The ISP1110VHTS is available in a Tape & Reel (TR) package, facilitating efficient handling and storage during manufacturing and assembly processes.

ISP1110VHTS Applications

The ISP1110VHTS is ideal for a variety of applications where reliable, high-speed data communication is essential. Its half-duplex operation and USB 2.0 protocol make it particularly suitable for:

• Consumer Electronics: Devices such as USB peripherals, smartphones, and tablets can benefit from the ISP1110VHTS’s efficient data transfer capabilities.
• Industrial Automation: In industrial settings, the robustness and reliability of the ISP1110VHTS ensure stable communication between control systems and various sensors or actuators.
• Automotive Electronics: The device’s wide supply voltage range and surface mount compatibility make it suitable for automotive applications where space and power efficiency are critical.
• Medical Devices: The ISP1110VHTS can be used in medical equipment requiring reliable data transmission, such as diagnostic tools and monitoring devices.

Conclusion of ISP1110VHTS

The ISP1110VHTS by ST-Ericsson Inc. is a versatile and reliable half-duplex transceiver designed for high-speed data communication. Its features, including a wide supply voltage range, receiver hysteresis, and USB 2.0 protocol compliance, make it an excellent choice for a variety of applications. Despite its obsolete status, the ISP1110VHTS remains a valuable component for applications requiring efficient and reliable data transfer. Its surface mount technology and moisture sensitivity level of 1 further enhance its suitability for modern manufacturing processes and ensure long-term reliability.
