RAVF164DFT11K5

RAVF164DFT11K5 Description

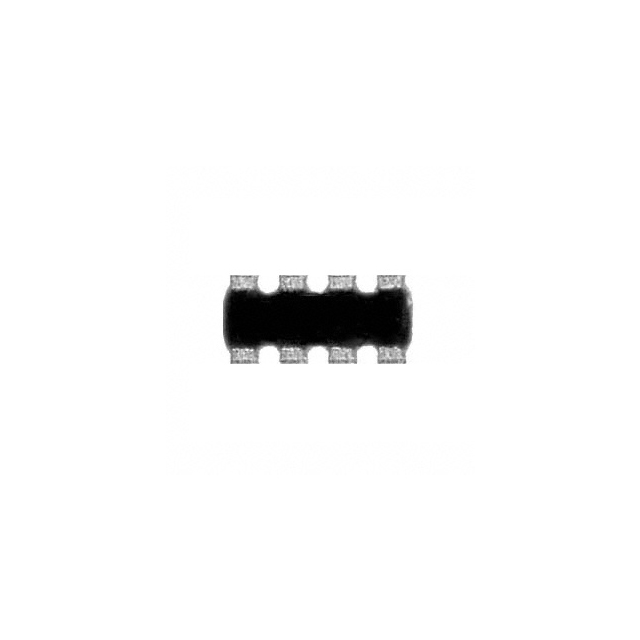

The RAVF164DFT11K5 from Stackpole Electronics, Inc. is a high-precision, surface-mount resistor network designed for compact electronic applications. This 4-resistor array offers a fixed resistance of 11.5 kΩ per element with a tight tolerance of ±1%, ensuring consistent performance in critical circuits. Encased in a 1206 (3216 Metric) convex package with long-side terminals, it features a low-profile design with a seated height of just 0.024" (0.60mm), making it suitable for space-constrained PCB layouts. The device operates within a ±200ppm/°C temperature coefficient, providing stable resistance across varying environmental conditions.

RAVF164DFT11K5 Features

• Precision Performance: ±1% tolerance and ±200ppm/°C TCR ensure reliable signal integrity in analog and digital circuits.
• Compact Design: 1206 package (3.20mm x 1.60mm) with convex, long-side terminals for robust solder joint reliability.
• High Power Handling: 100mW power rating per resistor, ideal for moderate-power applications.
• Isolated Circuit Configuration: Each resistor is electrically isolated, offering design flexibility.
• Industry Compliance: REACH unaffected, MSL 1 (unlimited shelf life), and ECCN EAR99 for global compatibility.

RAVF164DFT11K5 Applications

This resistor array excels in precision applications such as:

• Voltage Dividers & Pull-Up/Pull-Down Networks: Ensures stable biasing in microcontroller and sensor interfaces.
• Signal Conditioning: Used in op-amp feedback circuits and ADC/DAC reference networks.
• Consumer Electronics: Ideal for smartphones, wearables, and IoT devices due to its compact footprint.
• Industrial Controls: Suitable for PLCs and instrumentation where temperature stability is critical.

Conclusion of RAVF164DFT11K5

The RAVF164DFT11K5 combines precision, compactness, and reliability, making it a standout choice for modern electronics. Its isolated resistors, tight tolerance, and robust construction cater to demanding applications in consumer, industrial, and automotive sectors. For engineers seeking a balance of performance and space efficiency, this resistor network delivers exceptional value.
