RAVF164DFT13R0

RAVF164DFT13R0 Description

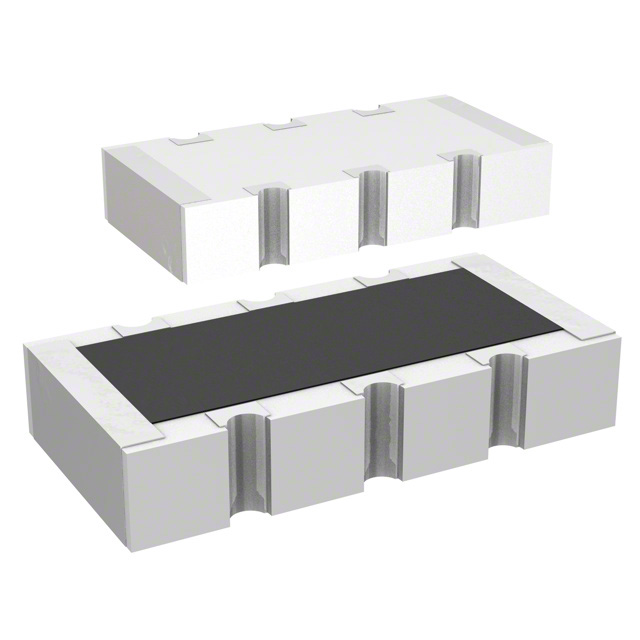

The RAVF164DFT13R0 from Stackpole Electronics, Inc. is a high-performance 4-resistor array designed for precision surface-mount applications. Housed in a compact 1206 (3216 Metric) convex package with long-side terminals, it offers a 13Ω resistance per element with a tight ±1% tolerance and a ±200ppm/°C temperature coefficient. This RoHS3-compliant, REACH-unaffected component is ideal for demanding circuits requiring stable performance across varying environmental conditions. Its isolated circuit configuration ensures independent resistor operation, while the 100mW power rating per element provides reliable power dissipation. Packaged in Tape & Reel (TR) for automated assembly, it meets industry standards for efficiency and reliability.

RAVF164DFT13R0 Features

• 4 isolated resistors in a space-saving 1206 footprint (3.20mm x 1.60mm, 0.60mm height).
• Precision resistance: 13Ω ±1% tolerance for consistent performance.
• Stable thermal response: ±200ppm/°C ensures minimal drift across temperature ranges.
• Robust construction: Convex, long-side terminals enhance mechanical stability and solderability.
• High power handling: 100mW per resistor, suitable for compact designs.
• MSL1 (Unlimited) rating: No baking required, simplifying storage and handling.
• Automation-friendly: Tape & Reel packaging streamlines high-volume production.

RAVF164DFT13R0 Applications

This resistor array excels in applications requiring precision, miniaturization, and reliability, such as:

• Signal conditioning in sensor interfaces and ADC/DAC circuits.
• Voltage division in portable electronics and IoT devices.
• Pull-up/down networks for microcontrollers and FPGAs.
• Medical devices where consistent resistance values are critical.
• Automotive electronics due to its robust thermal and mechanical performance.

Conclusion of RAVF164DFT13R0

The RAVF164DFT13R0 stands out for its combination of precision, compactness, and isolation, making it a superior choice over generic resistor arrays. Its low thermal drift, high power rating, and automation-ready packaging cater to modern electronics manufacturing needs. Whether for consumer electronics, industrial systems, or automotive applications, this component delivers reliability and performance in space-constrained designs. Stackpole Electronics' commitment to quality ensures compliance with global standards, reinforcing its suitability for mission-critical circuits.
