RAVF168DFT100R

RAVF168DFT100R Description

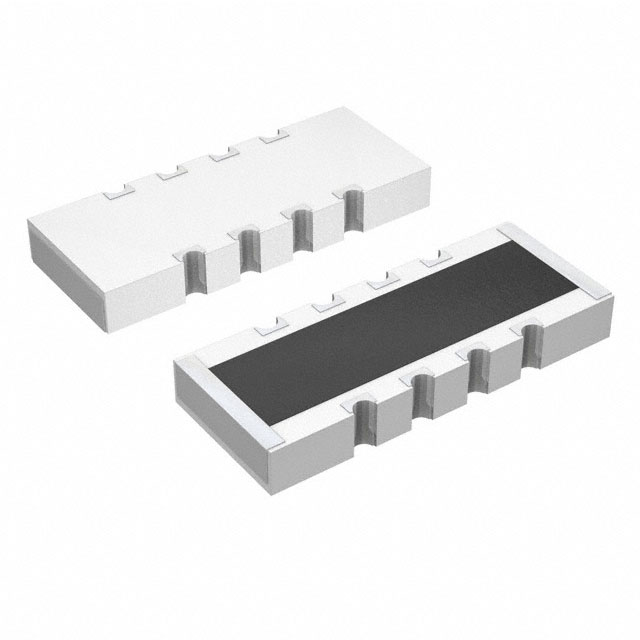

The RAVF168DFT100R from Stackpole Electronics, Inc. is a high-performance 8-resistor array designed for precision surface-mount applications. Encased in a compact 1506 (Convex, Long Side Terminals) package with dimensions of 0.157" x 0.063" (4.00mm x 1.60mm) and a low profile of 0.020" (0.50mm), this resistor network offers excellent space-saving benefits for densely populated PCBs. Each resistor in the array features a 100Ω resistance with a tight ±1% tolerance, ensuring reliable signal conditioning and voltage division in demanding circuits. The isolated circuit configuration allows independent use of each resistor, enhancing design flexibility.

RAVF168DFT100R Features

• 8 isolated resistors in a single 16-pin package, reducing component count and board space.
• 62.5mW power rating per element, suitable for low-power analog and digital circuits.
• ±200ppm/°C temperature coefficient, providing stable performance across operating temperatures.
• ROHS3 Compliant & REACH Unaffected, meeting stringent environmental regulations.
• Moisture Sensitivity Level (MSL) 1, ensuring reliability in humid environments without baking requirements.
• Tape & Reel (TR) packaging, optimized for automated assembly processes.

RAVF168DFT100R Applications

This resistor array is ideal for precision applications such as:

• Voltage dividers in sensor interfaces and ADC circuits.
• Pull-up/pull-down networks in microcontroller and FPGA designs.
• Signal conditioning for industrial automation and instrumentation.
• Impedance matching in high-frequency communication systems.
  Its compact footprint and high tolerance make it particularly valuable in wearable electronics, medical devices, and automotive control modules where space and reliability are critical.

Conclusion of RAVF168DFT100R

The RAVF168DFT100R combines high precision, miniaturization, and robust performance, making it a superior choice for modern electronics. Its isolated resistors, low thermal drift, and compliance with environmental standards position it as a versatile solution for engineers seeking efficiency without compromising accuracy. Whether for prototyping or mass production, this resistor array delivers consistent performance in space-constrained and thermally variable environments.
