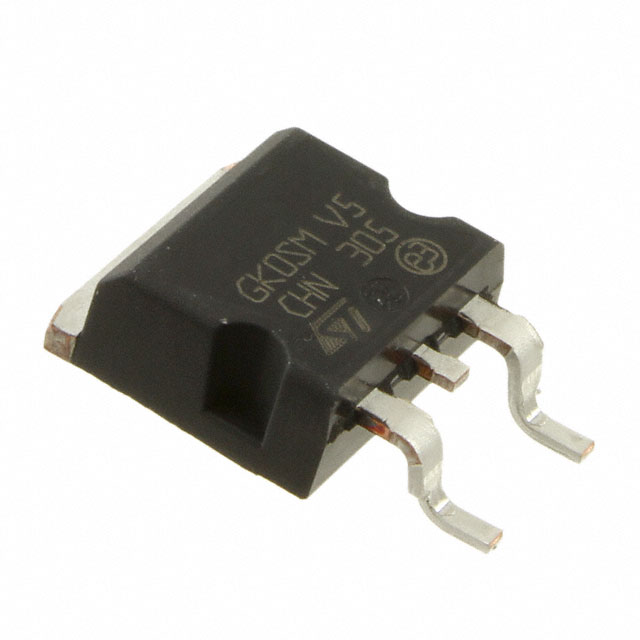

FERD30M45CG-TR

Diode Arrays

FERD30M45CG-TR Description

The FERD30M45CG-TR is a high-performance diode array from STMicroelectronics, designed for demanding applications that require robust rectification capabilities. This component is built on FERD (Field Effect Rectifier Diode) technology, ensuring efficient and reliable operation. With a maximum reverse voltage of 45V and an average rectified current of 15A per diode, the FERD30M45CG-TR is well-suited for high-power applications.

FERD30M45CG-TR Features

• Technology: FERD (Field Effect Rectifier Diode) technology for superior performance.
• Voltage - DC Reverse (Vr) (Max): 45V, allowing the component to handle high-voltage applications.
• Current - Average Rectified (Io) (per Diode): 15A, providing ample current handling capabilities.
• Voltage - Forward (Vf) (Max) @ If: 470 mV @ 15 A, ensuring low conduction losses.
• Diode Configuration: 1 Pair Common Cathode, simplifying circuit design.
• Speed: No Recovery Time > 500mA (Io), enabling fast switching.
• Current - Reverse Leakage @ Vr: 600 µA @ 45 V, minimizing power loss in reverse bias.
• Mounting Type: Surface Mount, facilitating integration into compact designs.
• Package: Tape & Reel (TR), ideal for automated assembly processes.
• Operating Temperature - Junction: 175°C (Max), suitable for high-temperature environments.
• RoHS Status: ROHS3 Compliant, ensuring environmental responsibility.
• REACH Status: REACH Unaffected, adhering to chemical regulations.
• Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating low sensitivity to moisture.

FERD30M45CG-TR Applications

The FERD30M45CG-TR is ideal for a variety of applications where high voltage and current rectification are required. Some specific use cases include:

• Power Supplies: Providing efficient rectification in high-voltage power supply designs.
• Industrial Automation: Withstanding the rigors of industrial environments with high-temperature operation and robust construction.
• Automotive Applications: Ideal for high-current rectification in automotive electronics, such as alternators and power management systems.
• Renewable Energy Systems: Supporting the conversion of AC to DC in solar panels and wind turbines.

Conclusion of FERD30M45CG-TR

The FERD30M45CG-TR from STMicroelectronics is a powerful diode array that offers high-voltage and high-current rectification capabilities. Its FERD technology, robust construction, and compliance with environmental regulations make it an excellent choice for a wide range of applications. With its unique features and advantages, the FERD30M45CG-TR stands out as a reliable and efficient solution in the electronics industry.
