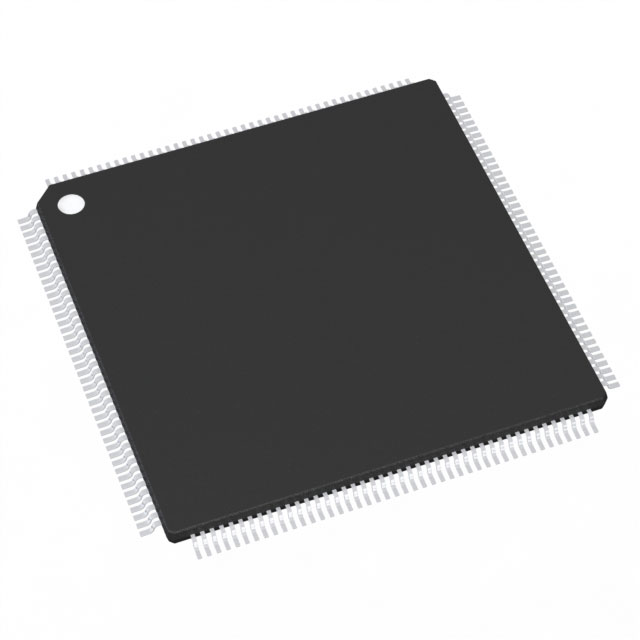

STMicroelectronics

SPC58EE80E7QMHAY

Microcontrollers

STMicroelectronics' SPC58EE80E7QMHAY is a high-performance automotive microcontroller designed for use in various automotive applications. This microcontroller is based on the Power Architecture® e200z4 core and operates at a maximum frequency of 80 MHz.

Description:

The SPC58EE80E7QMHAY is a 32-bit microcontroller that features a high level of integration and advanced peripherals. It is manufactured using a 130 nm CMOS process and is available in a 100-pin QFN package.

Features:

1. Core: Power Architecture® e200z4 core with a maximum frequency of 80 MHz.
2. Memory: 512 KB of Flash memory, 64 KB of RAM, and 4 KB of EEPROM.
3. Peripherals: Advanced peripherals such as CAN-FD, LIN, SPI, I2C, UART, and USB.
4. Security: Advanced security features, including a hardware cryptographic module and secure boot.
5. Connectivity: Integrated Ethernet and HDMI interfaces for high-speed data transfer and video output.
6. Safety: ASIL-D compliant, making it suitable for safety-critical automotive applications.
7. Power Management: Advanced power management features, including a low-power sleep mode and a wide operating voltage range (2.7 V to 5.5 V).

Applications:

The SPC58EE80E7QMHAY microcontroller is designed for use in various automotive applications, including:

1. Advanced Driver Assistance Systems (ADAS): The microcontroller's high performance and advanced peripherals make it suitable for processing sensor data and implementing complex algorithms in ADAS applications.
2. In-Vehicle Infotainment (IVI) Systems: The integrated Ethernet and HDMI interfaces enable high-speed data transfer and video output, making the SPC58EE80E7QMHAY suitable for IVI systems.
3. Body Control Modules: The microcontroller's advanced peripherals and power management features make it suitable for body control modules, such as lighting control, HVAC control, and door control.
4. Powertrain Control: The SPC58EE80E7QMHAY's high performance and ASIL-D compliance make it suitable for powertrain control applications, such as engine control and transmission control.
5. Safety Systems: The microcontroller's advanced security features and ASIL-D compliance make it suitable for safety-critical automotive applications, such as airbag control and electronic stability control.

In summary, the SPC58EE80E7QMHAY is a high-performance, automotive-qualified microcontroller that offers a wide range of features and capabilities, making it suitable for a variety of automotive applications.

SPC58EE80E7QMHAY Documents

Download datasheets and manufacturer documentation for SPC58EE80E7QMHAY

PCN Assembly/Origin :

SPC58xGx/SPC58xEx 05/Sept/2022

Datasheets :

SPC58EEx, SPC58NEx~

PCN Packaging :

SP5xxx 15/Nov/2021       Material Barrier Bag 17/Dec/2020

PCN Other :

SPC Errata UPD. 09/Oct/2023

PCN Design/Specification :

Mult Dev 18/May/2023       Safety Manuals Update 08/Sep/2020
