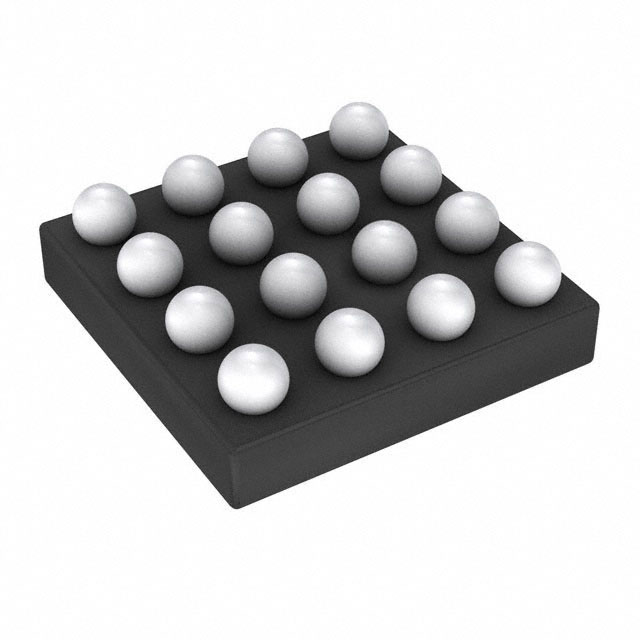

STHVDAC-253MTGF3

STHVDAC-253MTGF3 Description

The STHVDAC-253MTGF3, manufactured by STMicroelectronics, is a 7-bit digital-to-analog converter (DAC) designed for specialized applications within the electronics industry. This IC is part of the ADCs/DACs - Special Purpose ICs category, offering a unique blend of technical specifications and performance benefits. With a data interface of SPI and a mounting type of surface mount, this product is well-suited for integration into various electronic systems.

STHVDAC-253MTGF3 Features

• Data Interface: The SPI interface allows for high-speed communication between the DAC and other digital components, ensuring efficient data transfer.
• Voltage Supply Source: The STHVDAC-253MTGF3 can be powered by both analog and digital voltage sources, providing flexibility in power management.
• Resolution (Bits): With a 7-bit resolution, this DAC offers 128 discrete output levels, providing a good balance between resolution and power consumption.
• Voltage - Supply: The operating voltage range of 2.3V to 5V makes it compatible with a wide range of power supplies.
• Mounting Type: Surface mount technology allows for compact design and high-density integration on printed circuit boards (PCBs).
• Number of Channels: This DAC features 3 channels, enabling simultaneous control of multiple analog signals.
• Package: The tape and reel (TR) packaging is ideal for automated assembly processes, enhancing production efficiency.
• RoHS Status: Being ROHS3 compliant ensures that the product meets environmental standards, making it suitable for environmentally conscious applications.

STHVDAC-253MTGF3 Applications

The STHVDAC-253MTGF3 is ideal for applications where precise analog signal generation and control are required. Some specific use cases include:

• Industrial Control Systems: For controlling motor speeds, valve positions, and other analog outputs in industrial automation.
• Audio Processing: In audio equipment, this DAC can be used to convert digital audio signals into analog form for amplification.
• Sensor Signal Conditioning: For converting sensor data into analog signals that can be easily interfaced with analog systems.
• Medical Equipment: In medical devices where precise control of electrical signals is critical for patient safety and device performance.

Conclusion of STHVDAC-253MTGF3

While the STHVDAC-253MTGF3 is an obsolete product, it still offers a range of features that make it suitable for specialized applications. Its 7-bit resolution, 3-channel capability, and flexible voltage supply options provide a robust solution for systems requiring precise analog signal control. Despite its obsolescence, the STHVDAC-253MTGF3 remains a viable option for legacy systems or applications where its specific features are advantageous.
