STMicroelectronics

STLQ015M25R

Linear & Switching Voltage Regulators

STLQ015M25R Description

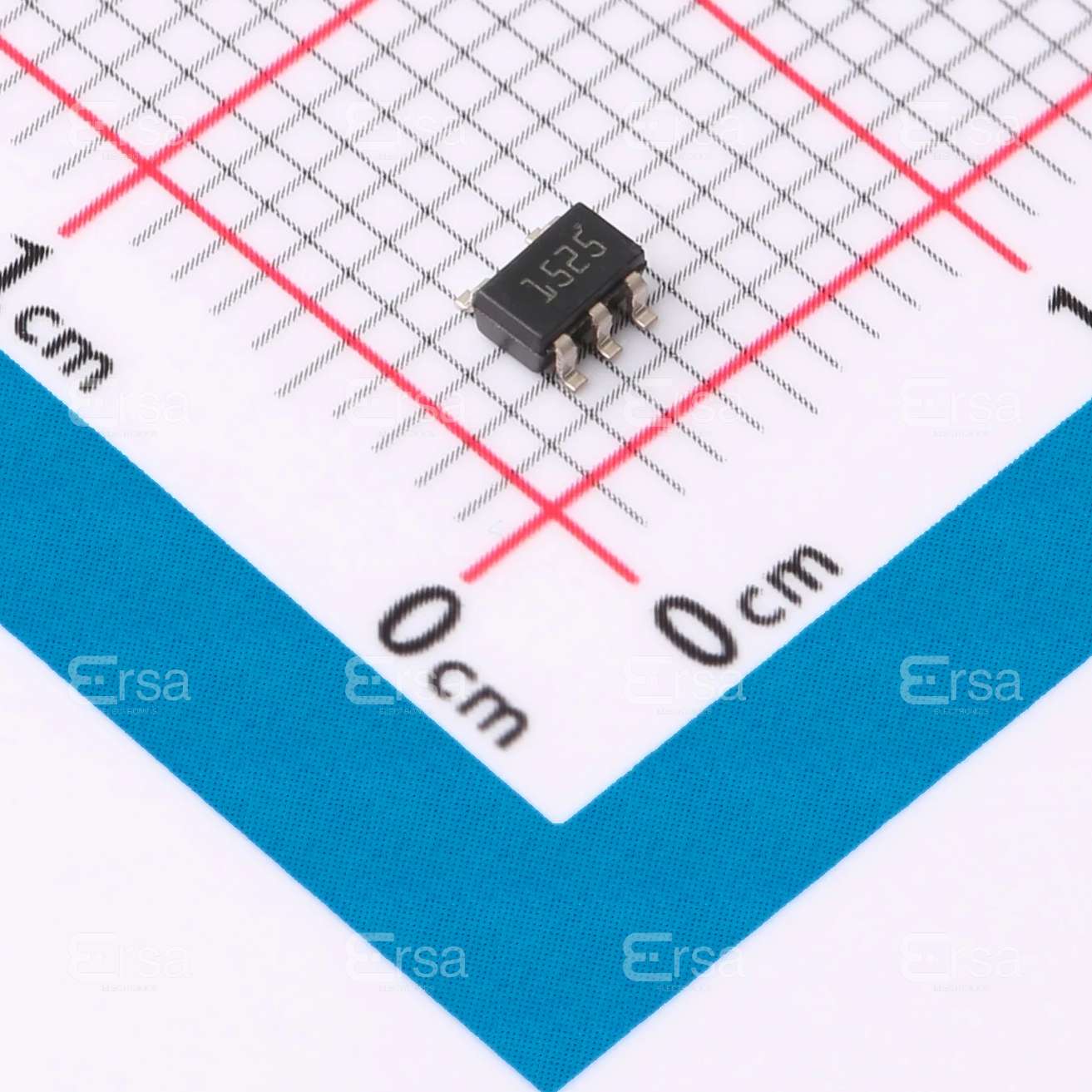

The STLQ015M25R is a linear voltage regulator from STMicroelectronics, designed to provide a stable and reliable output voltage. This device features a fixed output voltage of 2.5V and can deliver a maximum output current of 150mA. With a low quiescent current of 1.7µA and a supply current of 2.4µA, the STLQ015M25R is ideal for battery-powered applications where power efficiency is crucial. The device is available in a compact SOT23-5 package, making it suitable for space-constrained designs.

STLQ015M25R Features

• Fixed Output Voltage: The STLQ015M25R provides a fixed output voltage of 2.5V, ensuring consistent performance in various applications.
• Low Quiescent Current: With a quiescent current of 1.7µA, the device minimizes power consumption in battery-powered applications.
• Compact SOT23-5 Package: The small form factor of the SOT23-5 package allows for easy integration into space-constrained designs.
• Over Current and Over Temperature Protection: The device includes built-in protection features to safeguard against potential damage due to over current and over temperature conditions.
• RoHS3 Compliance: The STLQ015M25R is compliant with the RoHS3 directive, making it suitable for environmentally conscious applications.
• REACH Unaffected Status: The device is not affected by the REACH regulation, ensuring uninterrupted supply and availability.

STLQ015M25R Applications

The STLQ015M25R is ideal for a wide range of applications where a stable and efficient voltage regulator is required. Some specific use cases include:

1. Portable Electronics: Due to its low quiescent current and fixed output voltage, the STLQ015M25R is well-suited for battery-powered devices such as smartphones, tablets, and wearables.
2. IoT Devices: The compact size and low power consumption make it an excellent choice for IoT devices, where energy efficiency and space constraints are critical.
3. Sensors and Actuators: The device can be used to provide a stable power supply to sensors and actuators in industrial and automotive applications.
4. Medical Devices: The RoHS3 compliance and low quiescent current make the STLQ015M25R suitable for medical devices where reliability and power efficiency are essential.

Conclusion of STLQ015M25R

The STLQ015M25R is a versatile and efficient linear voltage regulator that offers a fixed output voltage of 2.5V and a maximum output current of 150mA. Its low quiescent current, compact package, and built-in protection features make it an ideal choice for a wide range of applications, including portable electronics, IoT devices, sensors, and medical equipment. With its RoHS3 compliance and REACH unaffected status, the STLQ015M25R is a reliable and environmentally friendly solution for your voltage regulation needs.

STLQ015M25R Documents

Download datasheets and manufacturer documentation for STLQ015M25R

PCN Assembly/Origin :

New Lead-Frame 01/Sep/2020

Datasheets :

STLQ015

PCN Packaging :

Moisture Barrier Bag 09/May/2016
