STMicroelectronics

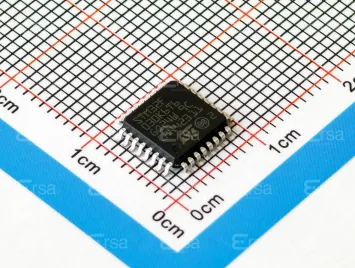

STM32F030K6T6

Microcontrollers

The STM32F030K6T6 is a low-end microcontroller unit (MCU) from STMicroelectronics' STM32 family of 32-bit ARM Cortex-M0+ processors. It is designed for a wide range of embedded applications and is particularly suitable for cost-sensitive and low-power applications.

Description:

The STM32F030K6T6 is a member of the STM32F0 series, which is based on the ARM Cortex-M0+ processor. It operates at a maximum frequency of 48 MHz and features 64 KB of Flash memory and 8 KB of RAM. The device is available in a 32-pin LQFP package.

Features:

1. ARM Cortex-M0+ processor with a maximum frequency of 48 MHz.
2. 64 KB of Flash memory for program storage.
3. 8 KB of RAM for data storage and execution.
4. 32 GPIO (General Purpose Input/Output) pins for interfacing with external components.
5. 1x 12-bit ADC (Analog-to-Digital Converter) with up to 16 channels for analog signal conversion.
6. 2x 16-bit timers with PWM (Pulse Width Modulation) capability for motor control and signal generation.
7. 1x USART (Universal Synchronous/Asynchronous Receiver/Transmitter) for serial communication.
8. 1x I2C (Inter-Integrated Circuit) interface for communication with I2C devices.
9. 1x SPI (Serial Peripheral Interface) for high-speed serial communication.
10. Low-power modes to reduce power consumption in standby and sleep modes.
11. Built-in voltage regulator and power-on-reset (POR) circuit.
12. -40°C to +85°C operating temperature range.

Applications:

The STM32F030K6T6 is suitable for a wide range of embedded applications, including but not limited to:

1. Industrial control and automation systems.
2. Home appliances and smart home devices.
3. Medical equipment and devices.
4. Portable electronic devices and wearables.
5. Battery-powered devices and energy-harvesting applications.
6. Human-Machine Interface (HMI) devices.
7. Motor control applications.
8. Sensor interfacing and data acquisition systems.
9. Low-power wireless applications.
10. Educational and hobbyist projects.

The STM32F030K6T6's combination of low cost, low power consumption, and a rich set of features make it an attractive choice for developers looking to implement embedded systems with limited resources and power constraints.

STM32F030K6T6 Documents

Download datasheets and manufacturer documentation for STM32F030K6T6

Errata :

STM32F030xx Errata

Datasheets :

STM32F030x4,6,8,C Datasheet

PCN Packaging :

Box Label Chg 28/Jul/2016

Manuals :

STM32F0zzz Programming Manual

Other Related Documents :

STN32F0zzzz Safety Manual       STM32F030, 070 Reference Manual

HTML Datasheet :

STM32F030x4,6,8,C Datasheet       STM32F0zzz Programming Manual
