STMicroelectronics

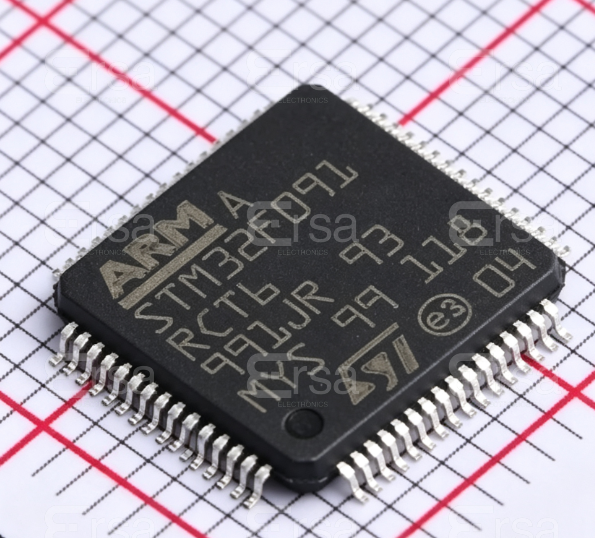

STM32F091RCT6TR

Microcontrollers

The STM32F091RCT6TR is a microcontroller unit (MCU) from STMicroelectronics, which is a part of the STM32 family of products. Here is a brief description of the model, its features, and potential applications:

Description:

The STM32F091RCT6TR is a high-performance, low-power, 32-bit ARM Cortex-M0+ processor-based MCU. It is designed to provide a balance of processing power, power efficiency, and a rich set of peripherals, making it suitable for a wide range of embedded applications.

Features:

1. Processor: It features an ARM Cortex-M0+ CPU with a frequency of up to 24 MHz.
2. Memory: The MCU includes 256 KB of Flash memory for program storage and 32 KB of RAM for data storage.
3. Peripherals: It comes with a variety of peripherals such as timers, communication interfaces (including USB and UART), ADCs, DACs, and a DMA controller.
4. Connectivity: It supports USB full-speed device/host/OTG and several communication interfaces like I2C, SPI, and USART.
5. Power Management: The MCU is designed to operate with a wide range of power supply voltages and includes power-saving modes to extend battery life in portable devices.
6. Package Type: The 'TR' in the part number indicates that this is a LQFP (Leaded Quad Flat Package) with 64 pins.
7. Operating Temperature: It is designed to operate in the extended temperature range from -40°C to +85°C.

Applications:

Given its features, the STM32F091RCT6TR is well-suited for a variety of embedded applications, including but not limited to:

1. Industrial Control: For control systems in manufacturing and automation where reliability and real-time performance are critical.
2. Medical Devices: In portable or wearable medical equipment where low power consumption and precision are necessary.
3. Consumer Electronics: For smart appliances and devices that require a combination of processing power and connectivity options.
4. Automotive: In various in-vehicle applications where robustness and a wide operating temperature range are required.
5. IoT Devices: As a core processor for Internet of Things (IoT) devices that need to communicate over various protocols and manage a range of sensors.
6. Portable Instruments: In handheld or battery-operated equipment where low power consumption is a priority.

The STM32F091RCT6TR is just one of many MCUs in the STM32 series, each tailored to specific application needs with different processing capabilities, memory sizes, and peripheral sets. When selecting an MCU for a particular application, developers consider factors such as the required processing power, available memory, peripheral support, power consumption, and the form factor that best fits the design constraints.

STM32F091RCT6TR Documents

Download datasheets and manufacturer documentation for STM32F091RCT6TR

Datasheets :

STM32F091xB, STM32F091xC

HTML Datasheet :

STM32F091xB, STM32F091xC

PCN Design/Specification :

Mult Dev 03/Nov/2022
