STMicroelectronics

STM32F302VCY6TR

The STM32F302VCY6TR is a microcontroller unit (MCU) manufactured by STMicroelectronics, a leading global semiconductor company. This MCU belongs to the STM32 family, which is designed for a wide range of applications, including industrial and consumer electronics. Here is a detailed description of the STM32F302VCY6TR, including its features and potential applications:

Description:

The STM32F302VCY6TR is a 32-bit ARM Cortex-M4 core-based microcontroller with a maximum operating frequency of 72 MHz. It is built on a high-performance, low-power architecture, making it suitable for applications that require efficient power consumption and high processing capabilities.

Features:

1. Core: The STM32F302VCY6TR features an ARM Cortex-M4 core with a floating-point unit (FPU) that enables high-performance processing and efficient execution of complex algorithms.
2. Memory: This MCU comes with 512 KB of Flash memory and 64 KB of RAM, providing ample storage for program code and data.

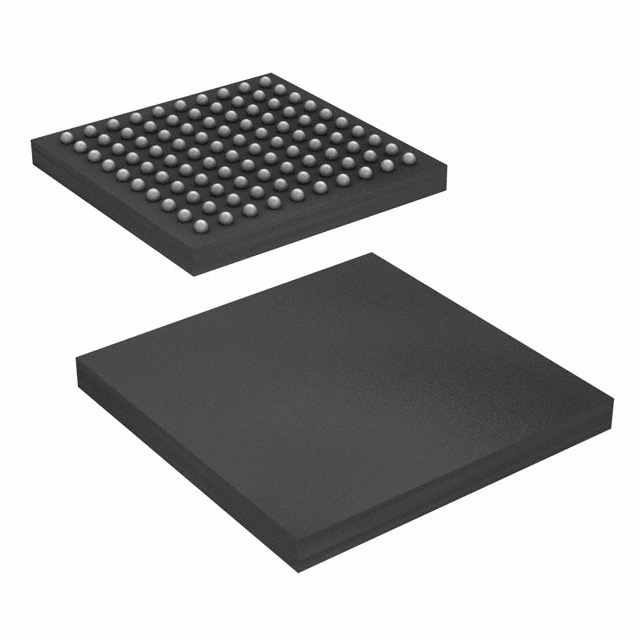

3. Package: The STM32F302VCY6TR is available in a 100-pin LQFP (Low-profile Quad Flat Package) package, making it suitable for a wide range of applications with varying space constraints.
4. Connectivity: This MCU offers various communication interfaces, including I2C, SPI, USART, and UART, allowing seamless integration with other devices and peripherals.
5. Timers and counters: The STM32F302VCY6TR includes advanced timers and general-purpose timers, which can be used for PWM generation, input capture, output compare, and other time-based applications.
6. ADC and DAC: This MCU features a 12-bit ADC with up to 16 channels and a 12-bit DAC, enabling accurate analog-to-digital and digital-to-analog conversions for various applications.
7. GPIO: The STM32F302VCY6TR has a range of general-purpose input/output (GPIO) pins, which can be configured for various functions, such as digital input/output, analog input, or alternate functions.
8. Power management: The MCU includes advanced power management features, such as a power voltage detector, a backup regulator, and a low-power sleep mode, ensuring efficient power consumption.

Applications:

The STM32F302VCY6TR is a versatile microcontroller suitable for a wide range of applications, including:

1. Industrial control and automation: The STM32F302VCY6TR can be used in motor control, sensor interfacing, and process control applications, thanks to its advanced timer and communication interfaces.
2. Consumer electronics: This MCU can be used in various consumer electronics, such as smart appliances, wearable devices, and portable gadgets, due to its low power consumption and high-performance capabilities.
3. Automotive: The STM32F302VCY6TR can be employed in automotive applications, such as infotainment systems, body control modules, and power management systems, owing to its robustness and reliability.
4. Medical devices: The MCU can be used in medical devices, such as patient monitoring systems, diagnostic equipment, and portable medical instruments, due to its precision and accuracy in handling analog signals.
5. IoT devices: The STM32F302VCY6TR is suitable for Internet of Things (IoT) applications, such as smart home devices, energy management systems, and remote monitoring solutions, thanks to its connectivity options and low power consumption.

In summary, the STM32F302VCY6TR is a high-performance, low-power microcontroller with a wide range of features that make it suitable for various applications across different industries. Its versatility, combined with the extensive support and development tools provided by STMicroelectronics, makes it an attractive choice for engineers and developers.
