STMicroelectronics

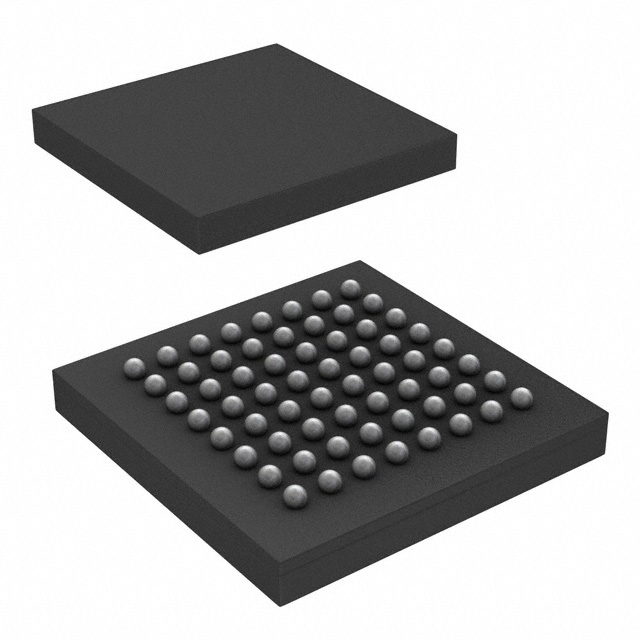

STM32F412REY6TR

STMicroelectronics' STM32F412REY6TR is a high-performance microcontroller belonging to the STM32F4 series, designed for a wide range of applications. Here is a description of the model, its features, and potential applications:

Description:

The STM32F412REY6TR is a 32-bit ARM Cortex-M4 core-based microcontroller that operates at a frequency of up to 100 MHz. It is manufactured using STMicroelectronics' advanced 65nm process technology, ensuring high performance, low power consumption, and a small footprint.

Features:

1. Processor: The microcontroller features an ARM Cortex-M4 core with a floating-point unit (FPU) and supports ARMv7-M architecture, providing high computational capabilities.
2. Memory: It comes with 2MB of Flash memory and 256KB of SRAM, offering ample storage and fast data processing.
3. Connectivity: The STM32F412REY6TR supports a wide range of communication interfaces, including USB OTG HS, USB OTG FS, SDIO, I2C, SPI, UART, CAN, and Ethernet.
4. Graphics: It includes a Chrom-ART Accelerator™, which is an advanced graphics processing unit (GPU) that supports 2D graphics, image processing, and video decoding.
5. Analog Features: The microcontroller has 3x 12-bit ADCs, 2x 12-bit DACs, and an operational amplifier, making it suitable for various analog applications.
6. Timers: It has multiple timers, including a 16-bit advanced motor control timer, a 16-bit general-purpose timer, and a 32-bit RTC.
7. Security: The STM32F412REY6TR has a range of security features, such as a unique 96-bit UID, a hardware cryptographic module, and a true random number generator.
8. Power Management: It offers a variety of low-power modes, allowing for extended battery life in portable devices.

Applications:

The STM32F412REY6TR is versatile and can be used in a wide range of applications, including:

1. Industrial Automation: Due to its advanced motor control timer and connectivity options, it is suitable for motor control and industrial communication systems.
2. Medical Devices: The microcontroller's precision ADCs and DACs make it ideal for medical equipment that requires accurate analog signal processing.
3. Consumer Electronics: Its graphics capabilities and connectivity options make it suitable for applications in smartphones, tablets, and other consumer electronics.
4. Automotive: The STM32F412REY6TR can be used in various automotive applications, such as infotainment systems, body control modules, and advanced driver assistance systems (ADAS).
5. IoT Devices: With its low power consumption and connectivity options, it is well-suited for Internet of Things (IoT) devices, such as smart home appliances and wearable devices.
6. Security Systems: The microcontroller's security features make it suitable for applications in security systems, such as access control and surveillance cameras.

The STM32F412REY6TR's combination of high performance, advanced features, and low power consumption make it a popular choice for a wide range of applications in various industries.
