STMicroelectronics

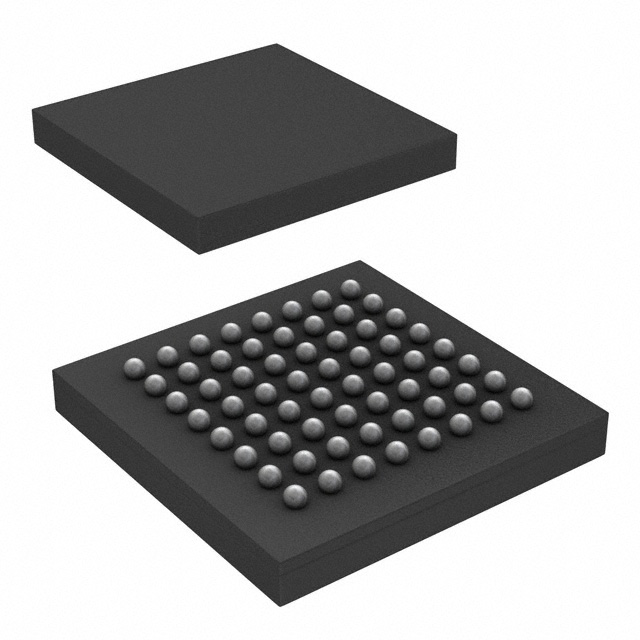

STM32F412RGY6TR

The STM32F412RGY6TR is a high-performance microcontroller unit (MCU) manufactured by STMicroelectronics. It belongs to the STM32F4 series, which is known for its advanced features and high performance. Here's a brief description, features, and applications of the STM32F412RGY6TR:

Description:

The STM32F412RGY6TR is a 32-bit ARM Cortex-M4 MCU with a Floating Point Unit (FPU) and DSP instructions. It operates on a single power supply voltage ranging from 1.71 to 3.6 V. The device is available in a 64-pin LQFP (Leaded Quad Flat Package) and is designed for a wide range of applications that require high performance and connectivity.

Features:

1. Processor: ARM Cortex-M4 CPU with FPU, running up to 100 MHz.
2. Memory: The MCU features 1 MB of Flash memory and 256 KB of SRAM.
3. Connectivity: It includes a wide range of communication interfaces such as USB OTG, two I2C interfaces, three SPI interfaces, and three UART interfaces.
4. Analog-to-Digital Converters (ADC): 3x 12-bit ADC with up to 24 channels.
5. Digital-to-Analog Converter (DAC): 2x 12-bit DAC.
6. Timers: Advanced control timers, general-purpose timers, and low-power timers.
7. Security: It includes a hash processor, a random number generator, and a true random number generator for enhanced security features.
8. Power Management: The MCU offers a range of power-saving features and low-power modes to extend battery life in portable devices.
9. Package: The 64-pin LQFP package is suitable for a variety of applications where space is at a premium.

Applications:

The STM32F412RGY6TR is suitable for a wide range of applications due to its high performance, connectivity options, and advanced features. Some of the potential applications include:

1. Industrial Automation: Control systems, motor control, and robotics.
2. Medical Equipment: Patient monitoring devices, diagnostic equipment, and portable medical instruments.
3. Consumer Electronics: Smart appliances, wearable devices, and portable electronics.
4. Automotive: In-vehicle infotainment systems, body control modules, and safety systems.
5. Avionic and Aerospace: Control systems for unmanned aerial vehicles (UAVs) and other aerospace applications.
6. IoT Devices: Internet of Things (IoT) devices that require high connectivity and processing power.
7. Security Systems: Access control systems, surveillance cameras, and alarm systems.

The STM32F412RGY6TR is a versatile and powerful MCU that can be tailored to meet the specific needs of a wide range of applications, making it a popular choice among engineers and developers.
