STMicroelectronics

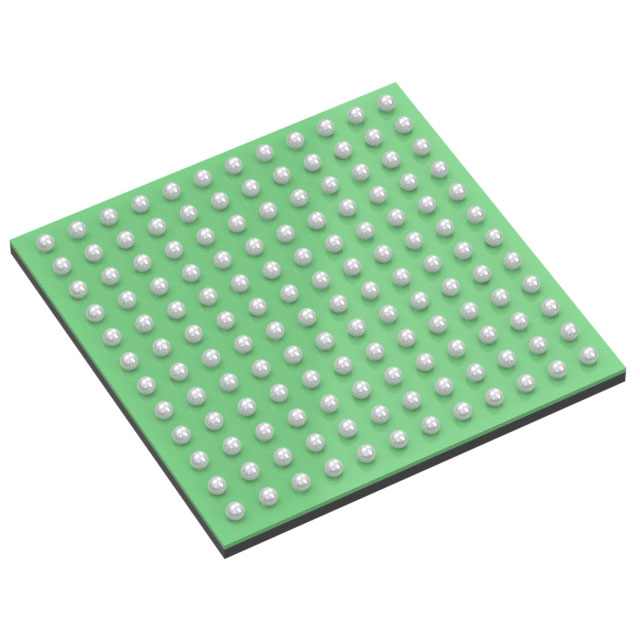

STM32F446ZCJ7

The STM32F446ZCJ7 is a high-performance microcontroller (MCU) from STMicroelectronics, which is part of the popular STM32 family. It is based on the ARM Cortex-M4 core and is designed for a wide range of applications, including industrial control, consumer electronics, and automotive systems.

Description:

The STM32F446ZCJ7 is a 32-bit MCU that operates at a maximum frequency of 180 MHz. It features an ARM Cortex-M4 core with a Floating Point Unit (FPU) and supports Thumb-2 technology for efficient code execution. The device comes in a 144-pin LQFP (Low Profile Quad Flat Package) package.

Features:

1. Core: ARM Cortex-M4 with FPU, operating at up to 180 MHz.
2. Memory: 512 KB Flash memory, 128 KB SRAM, and 64 KB CCM-SRAM.
3. Connectivity: USB OTG HS, USB OTG FS, Ethernet MAC, and SDIO interfaces.
4. Communication interfaces: I2C, SPI, UART, and CAN.
5. Analog features: 3x 12-bit ADC, 2x 12-bit DAC, and operational amplifiers.
6. Timers: 2x 16-bit timers, 2x PWM timers, and a real-time clock (RTC).
7. DMA channels: 16 DMA channels for efficient data transfer.
8. Security features: Secure boot, trusted boot, and secure key storage.
9. Power management: Advanced power management with power scaling and low-power sleep modes.

Applications:

1. Industrial control: Motor control, robotics, and automation systems.
2. Consumer electronics: Smart appliances, wearable devices, and portable electronics.
3. Automotive systems: Infotainment systems, body control modules, and powertrain control.
4. Medical devices: Patient monitoring systems, diagnostic equipment, and portable medical devices.
5. IoT devices: Smart home systems, smart energy management, and remote monitoring solutions.
6. Audio and video processing: Audio codecs, video streaming, and multimedia applications.

The STM32F446ZCJ7 offers a powerful combination of processing capabilities, connectivity options, and advanced features, making it suitable for a wide range of applications that require high performance and efficient power management.
