STMicroelectronics

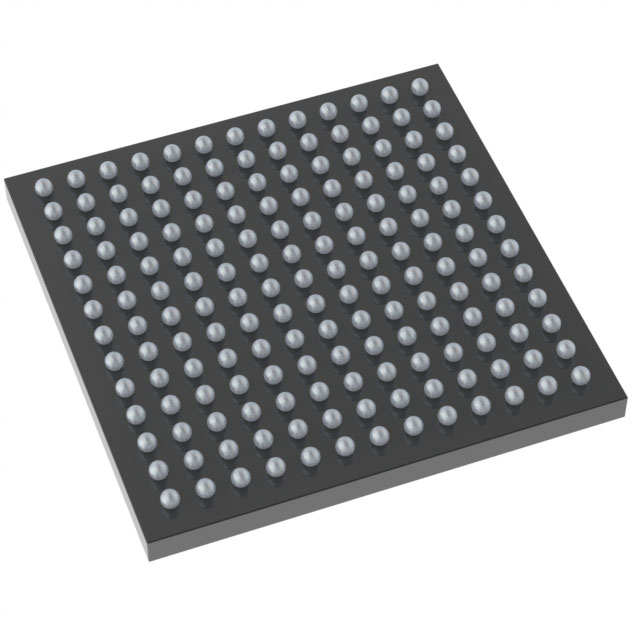

STM32H743AII6

Microcontrollers

The STM32H743AII6 is a high-performance microcontroller (MCU) from STMicroelectronics, which is part of the STM32 family of products. It is based on the ARM Cortex-M7 processor and is designed for a wide range of applications that require high computational power, real-time performance, and low power consumption.

Description:

The STM32H743AII6 is an advanced MCU that features a 32-bit ARM Cortex-M7 processor with a maximum frequency of 480 MHz. It is equipped with a range of communication interfaces, including USB, Ethernet, and multiple serial communication protocols. The MCU also includes a range of memory options, including up to 2 MB of Flash memory and 1 MB of SRAM.

Features:

1. ARM Cortex-M7 processor with a maximum frequency of 480 MHz
2. Up to 2 MB of Flash memory and 1 MB of SRAM
3. Multiple communication interfaces, including USB, Ethernet, and serial communication protocols
4. Advanced graphics capabilities, including a Chrom-ART Accelerator and support for TFT and MIPI-DSI displays
5. High-resolution audio support with an audio DAC and a low-power audio codec
6. Security features, including a hardware cryptographic module and a secure boot option
7. A range of power-saving features, including a low-power sleep mode and a power-scaling mode

Applications:

The STM32H743AII6 is suitable for a wide range of applications that require high computational power, real-time performance, and low power consumption. Some of the potential applications for this MCU include:

1. Industrial automation and control systems
2. Medical equipment and devices
3. Automotive infotainment systems
4. Networking and communication equipment
5. High-end consumer electronics, such as smartphones and tablets
6. IoT devices and smart home applications
7. Advanced graphics and multimedia applications

In summary, the STM32H743AII6 is a high-performance MCU from STMicroelectronics that offers a range of features and capabilities, making it suitable for a wide range of applications. Its advanced features, such as the ARM Cortex-M7 processor, multiple communication interfaces, and advanced graphics capabilities, make it an ideal choice for applications that require high computational power, real-time performance, and low power consumption.

STM32H743AII6 Documents

Download datasheets and manufacturer documentation for STM32H743AII6

Datasheets :

STM32H742x(I, G), STM32H743x(I, G) Datasheet

PCN Design/Specification :

STM32Hx 28/Jun/2022
