STMicroelectronics

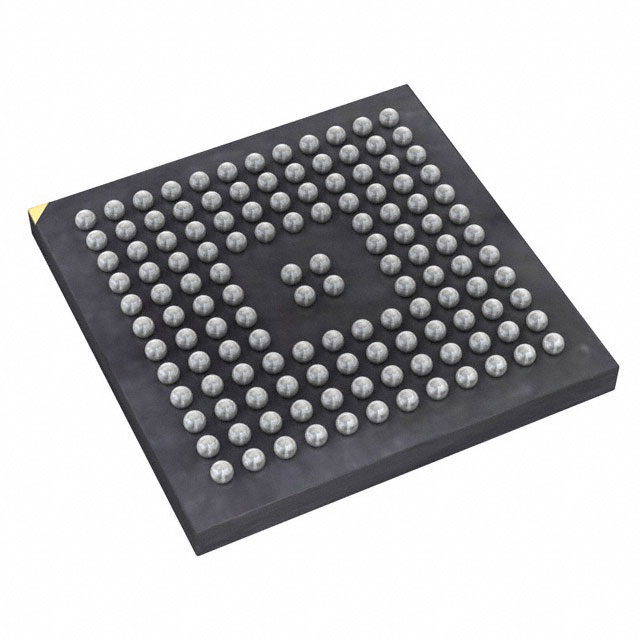

STM32L151QDH6

The STM32L151QDH6 is a microcontroller unit (MCU) produced by STMicroelectronics, a leading global semiconductor company. This particular model belongs to the STM32L1 series, which is designed for low-power and high-performance applications.

Description:

The STM32L151QDH6 is a 32-bit ARM Cortex-M3 based MCU with a wide range of features and capabilities. It operates at a core frequency of up to 32 MHz, providing fast and efficient processing power for various applications. The device comes in a LQFP (Low-profile Quad Flat Package) package with 64 pins, making it suitable for a variety of form factors and designs.

Features:

1. ARM Cortex-M3 32-bit processor with a core frequency of up to 32 MHz.
2. 512 KB of Flash memory for storing program code and data.
3. 80 KB of SRAM (Static Random Access Memory) for fast data access and processing.
4. Flexible clock system with an internal RC oscillator, external oscillator, and PLL (Phase-Locked Loop) options.
5. Advanced low-power modes to conserve energy and extend battery life in portable devices.
6. A wide range of communication interfaces, including I2C, SPI, USART, and USB.
7. 12-bit ADC (Analog-to-Digital Converter) with up to 16 channels for interfacing with analog sensors and signals.
8. DMA (Direct Memory Access) controller for efficient data transfer between peripherals and memory.
9. CRC (Cyclic Redundancy Check) calculation unit for error detection in data communication.
10. Various timers and counters, including a real-time clock (RTC) for timekeeping functions.

Applications:

The STM32L151QDH6 is designed for a wide range of applications that require low power consumption, high performance, and advanced connectivity features. Some of the key applications include:

1. Portable devices: The low-power capabilities of the STM32L151QDH6 make it suitable for use in battery-powered devices such as smartphones, wearables, and portable medical devices.
2. Industrial automation: The MCU can be used in control systems for industrial machinery, sensors, and actuators, benefiting from its robust communication interfaces and processing power.
3. Smart home and IoT devices: The STM32L151QDH6 can be used in smart home devices, such as smart thermostats, lighting systems, and security systems, due to its connectivity options and low power consumption.
4. Consumer electronics: The MCU can be integrated into various consumer electronics, such as audio devices, cameras, and gaming consoles, for enhanced performance and functionality.
5. Automotive applications: The STM32L151QDH6 can be used in automotive systems for power management, infotainment, and safety features, taking advantage of its low power consumption and robust communication capabilities.

In summary, the STM32L151QDH6 is a versatile and powerful microcontroller from STMicroelectronics, designed for low-power and high-performance applications across various industries. Its wide range of features, including advanced communication interfaces, low-power modes, and a robust processing unit, make it an ideal choice for many applications, from portable devices to industrial automation systems.
