STMicroelectronics

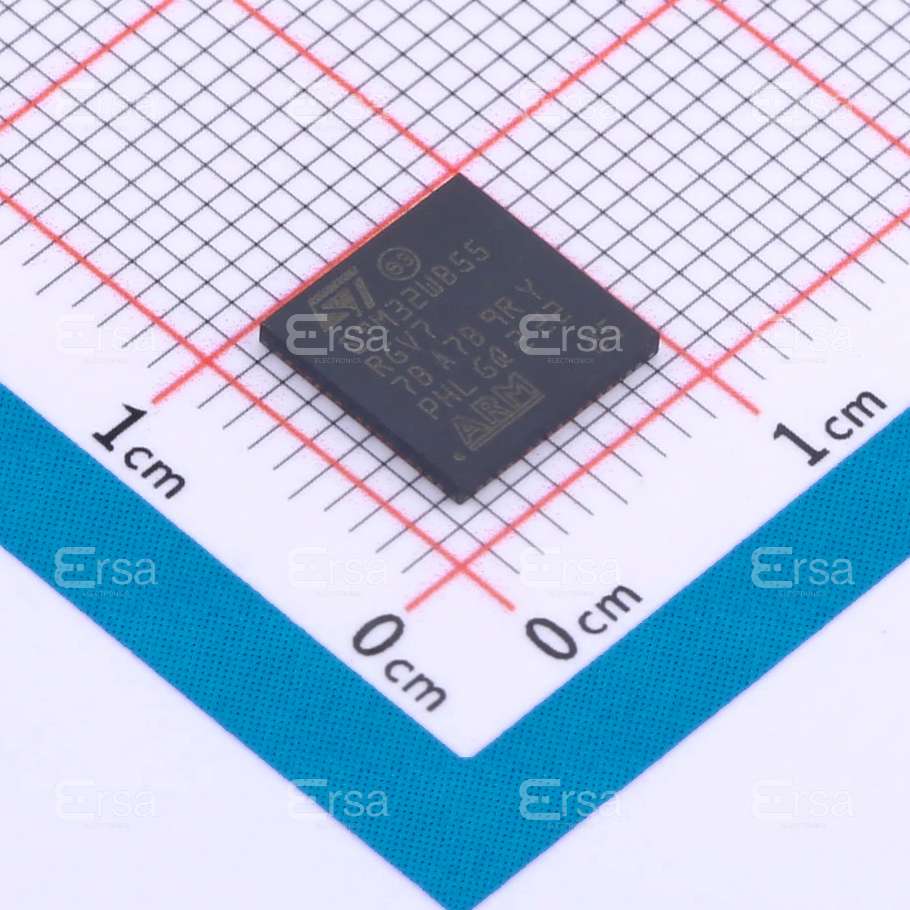

STM32WB55RGV7

The STM32WB55RGV7 is a wireless microcontroller unit (MCU) from STMicroelectronics, which is designed for Internet of Things (IoT) applications. Here is a brief description of the model, its features, and potential applications:

Description:

The STM32WB55RGV7 is part of the STM32WB series, which is a family of ultra-low-power wireless MCUs with integrated Bluetooth® Low Energy (BLE) and IEEE 802.15.4 capabilities. It is based on the ARM Cortex-M4 CPU with FPU and features a high degree of integration, making it suitable for a wide range of IoT devices.

Features:

1. Processor: ARM Cortex-M4 CPU with FPU, running up to 64 MHz.
2. Memory: The package includes 512 KB of Flash memory and 192 KB of SRAM.
3. Wireless Connectivity: Integrated BLE and 802.15.4, which allows for low-power wireless communication.
4. Security: It includes a wide range of security features like secure boot, hardware crypto processors, and secure key storage.
5. Power Management: Ultra-low-power technology suitable for battery-operated devices.
6. ADC: 16-bit ADC with up to 24 channels.
7. Timers: Multiple timers for PWM, input capture, output compare, and more.
8. Interfaces: USB Type-C with USB Power Delivery, and a range of communication interfaces including SPI, I2C, USART, and more.
9. Package Type: The 'V7' in the model number indicates the package type, which is a 7x7 mm UFBGA (Ultra-Fine Ball Grid Array) package.

Applications:

1. Smart Home: For devices like smart locks, thermostats, and lighting systems that require wireless connectivity and low power consumption.
2. Wearable Devices: Fitness trackers, smartwatches, and health monitors can benefit from its low power and wireless capabilities.
3. Industrial Automation: In sensor networks for monitoring and control in industrial environments.
4. Medical Devices: For portable and wireless medical equipment that requires secure communication and low power.
5. Smart City Applications: Environmental monitoring, parking systems, and public safety devices.
6. Asset Tracking: For tracking high-value assets in logistics and supply chain management.

The STM32WB55RGV7 is a versatile MCU that can be used in a variety of IoT applications where wireless connectivity, low power consumption, and a secure environment are critical. Its combination of processing power, memory, and wireless capabilities makes it a strong contender for IoT device development.
