STPS20L45CG-TR

Diode Arrays

STPS20L45CG-TR Description

The STPS20L45CG-TR is a high-performance Schottky diode array from STMicroelectronics, designed for applications requiring fast recovery and high current handling. This device features a common cathode configuration, making it ideal for various power electronics applications. With a maximum reverse voltage of 45V and an average rectified current of 10A per diode, the STPS20L45CG-TR offers excellent performance in demanding environments.

STPS20L45CG-TR Features

• Fast Recovery Speed: The STPS20L45CG-TR boasts a fast recovery time of less than 500ns, ensuring minimal power loss during switching.
• High Current Handling: Capable of handling up to 10A per diode, this diode array is suitable for high-power applications.
• Low Forward Voltage: With a maximum forward voltage of 550mV at 10A, the STPS20L45CG-TR offers high efficiency in power conversion.

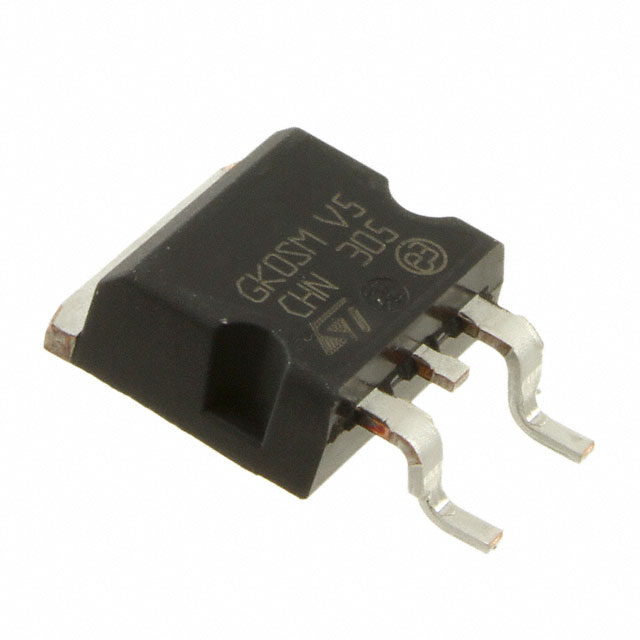

• Surface Mount Technology: The D2PAK package allows for easy integration into surface mount applications, reducing overall system size and complexity.
• Compliance: The STPS20L45CG-TR is REACH unaffected, RoHS3 compliant, and EAR99 classified, ensuring regulatory compliance in various markets.

STPS20L45CG-TR Applications

The STPS20L45CG-TR is ideal for use in a variety of applications, including:

• Power Supplies: Its high current handling and low forward voltage make it suitable for power supply rectification.
• Automotive Electronics: The device's robustness and fast recovery time are well-suited for automotive applications, such as alternator rectification and power management systems.
• Industrial Control Systems: The STPS20L45CG-TR can be used in industrial control systems where high current and fast switching are required.
• Renewable Energy Systems: This diode array is well-suited for solar panel and wind turbine power management systems, where high efficiency and reliability are critical.

Conclusion of STPS20L45CG-TR

The STPS20L45CG-TR from STMicroelectronics is a versatile and high-performance diode array, offering a combination of fast recovery, high current handling, and low forward voltage. Its surface mount package and compliance with various regulations make it an excellent choice for a wide range of power electronics applications. With its unique features and advantages, the STPS20L45CG-TR stands out as a reliable and efficient solution in demanding environments.
