STMicroelectronics

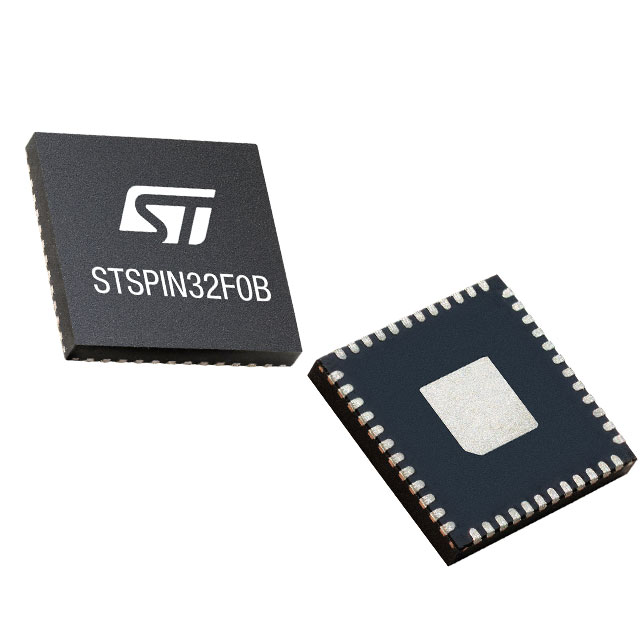

STSPIN32F0BTR

The STSPIN32F0BTR is a member of STMicroelectronics' STSPIN family of motor control microcontrollers. It is based on the 32-bit ARM Cortex-M0 CPU and is designed specifically for brushless DC motor control applications.

Description:

The STSPIN32F0BTR is a highly integrated motor control microcontroller that combines a powerful CPU with a range of motor control peripherals. It features a 32-bit ARM Cortex-M0 CPU with a maximum frequency of 48 MHz, 256 KB of flash memory, and 32 KB of RAM. The device also includes a range of motor control peripherals, including three half-bridge drivers, a Hall sensor interface, and a PWM generator.

Features:

• 32-bit ARM Cortex-M0 CPU with a maximum frequency of 48 MHz
• 256 KB of flash memory and 32 KB of RAM
• Three half-bridge drivers for motor control
• Hall sensor interface for commutation
• PWM generator for motor speed control
• Advanced control algorithms for precise motor control
• Low power consumption for energy-efficient operation
• Wide operating temperature range (-40°C to +125°C)
• AEC-Q100 qualified for automotive applications

Applications:

The STSPIN32F0BTR is suitable for a wide range of motor control applications, including:

• Industrial motor control systems
• Automotive applications such as electric power steering and oil pumps
• Appliances such as washing machines and air conditioners
• Robotics and automation systems
• Fans and blowers in various applications

Overall, the STSPIN32F0BTR is a powerful and highly integrated motor control microcontroller that offers precise control and low power consumption for a wide range of applications. Its advanced features and wide operating temperature range make it suitable for use in demanding environments such as automotive and industrial applications.
