STMicroelectronics

TSB571ILT

TSB571ILT Description

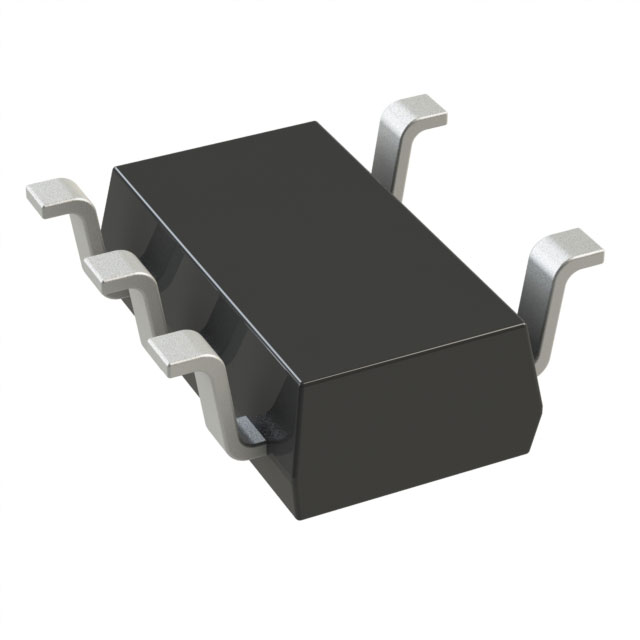

The TSB571ILT from STMicroelectronics is a general-purpose operational amplifier designed for precision and efficiency in low-power applications. Packaged in a compact SOT23-5 surface-mount form factor and supplied in Tape & Reel (TR), it integrates a single amplifier circuit with a 2.5 MHz gain bandwidth product and 1V/µs slew rate, ensuring stable performance in signal conditioning and amplification tasks. Operating over a 4V to 36V supply range, it delivers 65 mA output current while consuming just 380µA supply current, making it ideal for battery-powered systems. With an ultra-low 8 nA input bias current and 1.5 mV input offset voltage, it excels in high-impedance and precision analog designs.

TSB571ILT Features

• Wide Supply Range (4V–36V): Supports diverse power configurations, including single- and dual-supply setups.
• Low Power Consumption (380µA): Optimized for energy-sensitive applications like IoT and portable devices.
• High Output Drive (65 mA): Capable of driving moderate loads directly, reducing external buffering needs.
• Low Input Bias Current (8 nA): Minimizes errors in high-impedance sensor interfaces (e.g., photodiodes, pH probes).
• RoHS3 Compliant & REACH Unaffected: Meets stringent environmental and regulatory standards.
• Stable Performance: 1 (Unlimited) MSL rating ensures reliability in humid environments.

TSB571ILT Applications

• Sensor Signal Conditioning: Ideal for amplifying weak signals from thermocouples, strain gauges, or medical sensors.
• Battery-Powered Systems: Low quiescent current extends runtime in wearables, remote monitors, and energy harvesters.
• Industrial Control: Robust 36V tolerance suits PLCs, motor control feedback loops, and 4–20mA transmitters.
• Portable Audio: Combines low noise and adequate bandwidth for headphone amplifiers or microphone preamps.
• Active Filters & Integrators: The 2.5 MHz GBW supports precision analog signal processing in instrumentation.

Conclusion of TSB571ILT

The TSB571ILT stands out as a versatile, low-power op-amp balancing performance and efficiency. Its wide voltage range, minimal power draw, and high output drive make it superior to similar models (e.g., LMV321) in dynamic range and load-handling. Whether in precision sensor networks, industrial automation, or portable electronics, it delivers reliability with STMicroelectronics' quality assurance. A compelling choice for designers seeking a cost-effective, space-saving amplifier without compromising on precision or durability.
