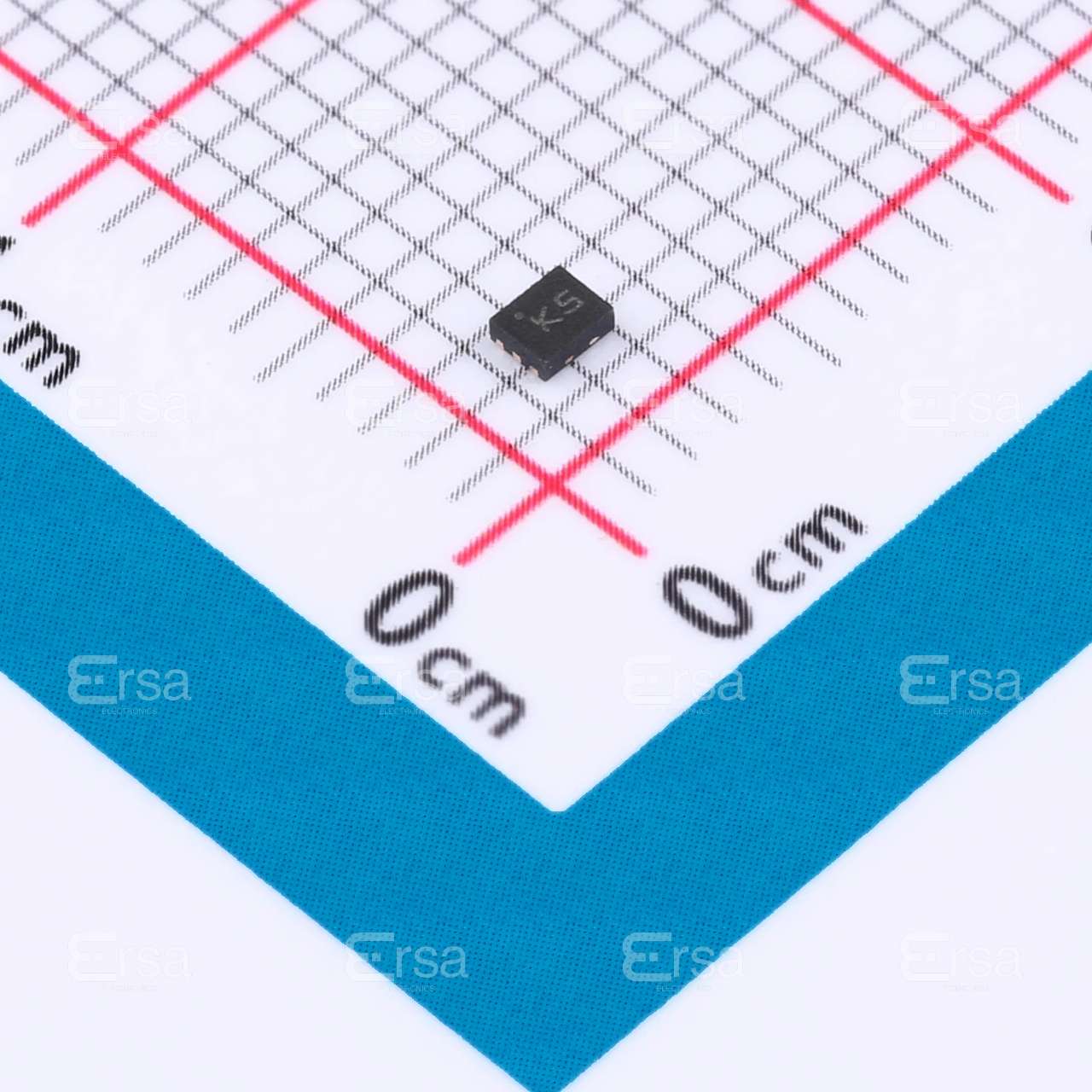

TSV991AIQ1T

TSV991AIQ1T Description

The TSV991AIQ1T from STMicroelectronics is a high-performance, general-purpose operational amplifier (op-amp) designed for precision analog applications. Packaged in a compact 6-UDFN form factor, this surface-mount IC is optimized for low-power, high-speed operation with a 2.5V to 5.5V supply range. It features a 20 MHz gain bandwidth product (GBW) and a 10V/µs slew rate, making it suitable for signal conditioning, filtering, and amplification tasks. With an ultra-low 1 pA input bias current and 1.5 mV input offset voltage, it ensures minimal signal distortion, ideal for high-impedance sensor interfaces and precision measurement systems.

TSV991AIQ1T Features

• Low Power Consumption: Operates at 820µA supply current, extending battery life in portable devices.
• High Output Drive: Delivers 35 mA output current, enabling direct driving of ADCs or capacitive loads.
• Wide Supply Range: Supports 2.5V to 5.5V, accommodating both 3.3V and 5V systems.
• Low Noise & Offset: 1 pA bias current and 1.5 mV offset enhance accuracy in sensitive applications.
• Robust Packaging: 6-UDFN (Tape & Reel) ensures space efficiency and automated assembly compatibility.
• Environmental Compliance: ROHS3 and REACH compliant, with MSL1 (Unlimited) moisture sensitivity.

TSV991AIQ1T Applications

• Sensor Signal Conditioning: Ideal for amplifying low-level signals from thermocouples, strain gauges, or photodiodes.
• Portable Medical Devices: Combines low power and precision for ECG, blood glucose monitors, and wearable sensors.
• Industrial Control Systems: Suitable for PID controllers, motor drive feedback loops, and instrumentation amplifiers.
• Consumer Electronics: Enhances audio signal integrity in headphones, microphones, and portable audio equipment.
• Automotive Systems: Used in battery management, pressure sensing, and infotainment due to its wide voltage range.

Conclusion of TSV991AIQ1T

The TSV991AIQ1T stands out as a versatile, high-performance op-amp, balancing speed, precision, and power efficiency. Its 20 MHz GBW, 10V/µs slew rate, and ultra-low input bias current make it superior to generic op-amps in dynamic response and signal fidelity. Whether in medical, industrial, or consumer applications, this IC delivers reliable performance in space-constrained designs. STMicroelectronics' commitment to quality ensures compliance with stringent environmental and reliability standards, making it a trusted choice for engineers.
