MCNC48102J

MCNC48102J Description

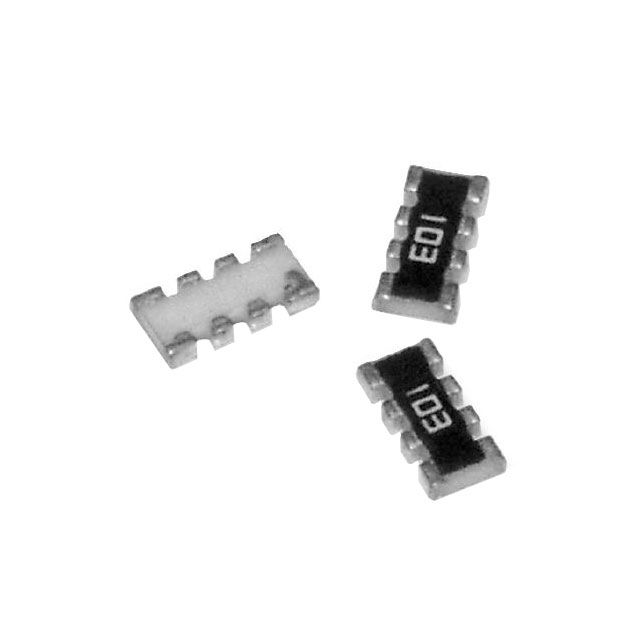

The MCNC48102J from TE Connectivity Passive Product is a high-performance 4-resistor network designed for precision surface-mount applications. Encased in a compact 1206 (3216 Metric) convex package with long-side terminals, this device offers a 1kΩ resistance per element with a ±5% tolerance and a ±400ppm/°C temperature coefficient. Its isolated circuit configuration ensures independent resistor functionality, making it ideal for signal conditioning, voltage division, and pull-up/pull-down applications. The 62.5mW power rating per element and RoHS3 compliance further enhance its suitability for modern electronics. Packaged in Tape & Reel (TR) for automated assembly, it meets MSL 1 (Unlimited) standards, ensuring reliability in humid environments.

MCNC48102J Features

• Compact Design: Measures 0.126" x 0.063" (3.20mm x 1.60mm) with a low-profile 0.020" (0.50mm) height, saving PCB space.
• High Reliability: Convex, long-side terminals improve solder joint integrity and mechanical stability.
• Wide Compatibility: ±400ppm/°C thermal stability and 1kΩ resistance suit diverse analog/digital circuits.
• Automation-Friendly: Tape & Reel packaging streamlines high-volume production.
• Environmental Compliance: RoHS3 and REACH (Vendor Undefined) adherence aligns with global regulations.

MCNC48102J Applications

• Signal Conditioning: Precision voltage division in sensor interfaces (e.g., thermocouples, strain gauges).
• Pull-Up/Down Networks: Stabilizing digital I/O lines in microcontrollers and FPGAs.
• Consumer Electronics: Space-constrained devices like wearables and IoT modules.
• Industrial Controls: Robust performance in PLCs and motor drivers due to 62.5mW power handling.
• Automotive Systems: Reliable operation in infotainment and ADAS (non-safety-critical).

Conclusion of MCNC48102J

The MCNC48102J excels in miniaturized, high-density designs with its low-profile, high-power resistor network. Its isolated circuit architecture and automation-ready packaging make it a superior choice over bulkier discrete resistors or less stable arrays. Ideal for consumer, industrial, and automotive applications, it balances performance, size, and cost while meeting stringent environmental standards. Engineers seeking reliable, space-efficient solutions will find this model indispensable.
