MCNY41J472F

MCNY41J472F Description

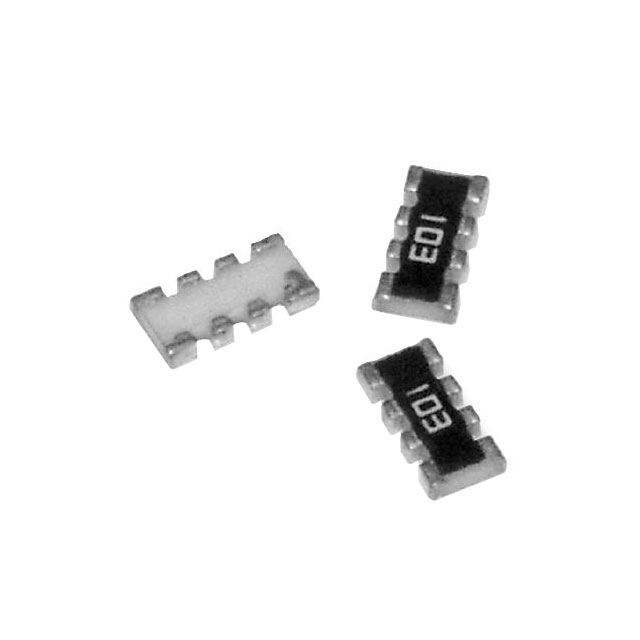

The MCNY41J472F from TE Connectivity Passive Product is a high-performance 4-resistor network designed for precision surface-mount applications. Housed in a compact 1206 (3216 Metric) convex package with long-side terminals, this isolated resistor array offers a 4.7kΩ resistance per element with a tight ±1% tolerance and a ±400ppm/°C temperature coefficient. Its 62.5mW power rating per element and ROHS3 compliance ensure reliability in demanding environments. The device is packaged in Tape & Reel (TR) for automated assembly efficiency, with a low-profile 0.024" (0.60mm) seated height and MSL 1 (Unlimited) moisture sensitivity, making it ideal for high-volume production.

MCNY41J472F Features

• 4 isolated resistors in a single 1206 package, saving PCB space versus discrete components.
• Precision performance: ±1% tolerance and ±400ppm/°C TCR ensure stable operation across temperature variations.
• Robust construction: Convex, long-side terminals enhance mechanical stability and solder joint reliability.
• 62.5mW power handling per resistor, suitable for signal conditioning and pull-up/down applications.
• MSL 1 rated for unlimited floor life, reducing handling constraints in manufacturing.
• RoHS3 compliant and EAR99/ECCN classified, meeting global environmental and export standards.

MCNY41J472F Applications

• Signal termination and voltage division in communication interfaces (I2C, SPI).
• Pull-up/pull-down networks in microcontroller and FPGA circuits.
• Industrial automation: Sensor signal conditioning and PLC I/O modules.
• Consumer electronics: Dense PCBs in smart devices, wearables, and IoT nodes.
• Automotive systems: Non-critical ECU circuits where space optimization is key.

Conclusion of MCNY41J472F

The MCNY41J472F combines space efficiency, precision, and reliability, making it a superior choice for designs requiring multiple matched resistors. Its 1206 convex package and high power density outperform conventional arrays in mechanical robustness and thermal performance. Ideal for automated assembly and harsh environments, this resistor network is a versatile solution for modern electronics demanding miniaturization without compromising performance.
