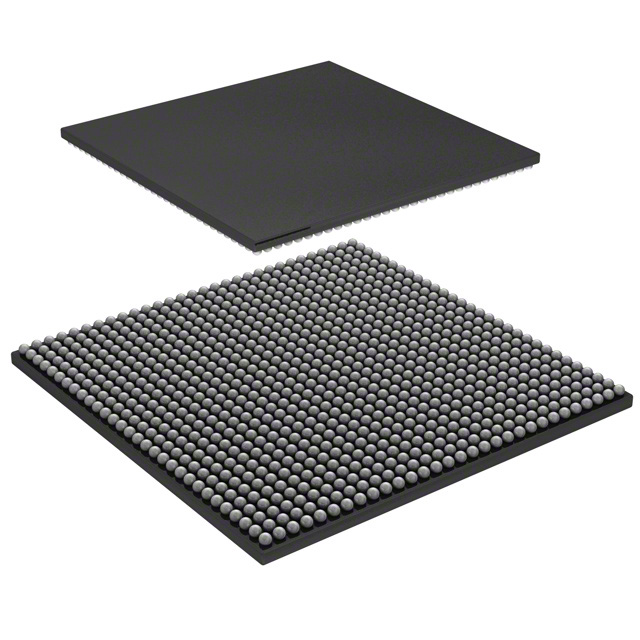

66AK2L06XCMS2

66AK2L06XCMS2 Description

The 66AK2L06XCMS2 is a high-performance System on Chip (SoC) from Texas Instruments, featuring a multicore architecture that combines a DSP and ARM® processor. This device is part of the 66AK2Lx KeyStone Multicore series, designed for demanding applications requiring both signal processing and general-purpose computing capabilities. The 66AK2L06XCMS2 operates within a temperature range of 0°C to 100°C (TC) and is available in a surface-mount package, making it suitable for a wide range of industrial and embedded systems.

66AK2L06XCMS2 Features

• Clock Rate: The 66AK2L06XCMS2 boasts a clock rate of 1.2GHz, ensuring rapid processing capabilities for both DSP and ARM® tasks.
• Non-Volatile Memory: The device includes 384kB of ROM, providing onboard storage for critical firmware and configuration data.
• On-Chip RAM: With 5.384MB of on-chip RAM, the 66AK2L06XCMS2 offers ample memory for high-speed data processing and storage.
• Voltage Specifications: The core voltage is variable, while the I/O voltage supports multiple levels (0.85V, 1.0V, 1.8V, 3.3V), allowing for flexibility in system design.
• Interface Options: The 66AK2L06XCMS2 supports a wide range of interfaces, including EBI/EMI, Ethernet, DMA, I2C, PCIe, SPI, UART/USART, USB 3.0, and USIM, making it highly versatile for various connectivity needs.
• Compliance and Status: The device is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and regulatory standards. It also has a Moisture Sensitivity Level (MSL) of 4 (72 Hours), suitable for standard surface-mount assembly processes.

66AK2L06XCMS2 Applications

The 66AK2L06XCMS2 is ideal for applications requiring high-performance processing and efficient data handling. Some specific use cases include:

• Industrial Automation: The combination of DSP and ARM® cores allows for real-time control and signal processing in complex automation systems.
• Telecommunications: The device's robust connectivity options and high-speed processing capabilities make it suitable for next-generation communication infrastructure.
• Embedded Systems: The versatile interface options and onboard memory make the 66AK2L06XCMS2 a strong candidate for embedded systems requiring both computational power and efficient memory management.
• Automotive: The wide operating temperature range and surface-mount package make it suitable for automotive applications where reliability and performance are critical.

Conclusion of 66AK2L06XCMS2

The 66AK2L06XCMS2 from Texas Instruments is a powerful and versatile SoC that combines the strengths of DSP and ARM® processors. Its high clock rate, substantial on-chip RAM, and extensive interface options make it an excellent choice for a variety of demanding applications. The device's compliance with environmental and regulatory standards ensures it meets the needs of modern electronics manufacturing. Whether used in industrial automation, telecommunications, embedded systems, or automotive applications, the 66AK2L06XCMS2 offers a reliable and high-performance solution.
