CDC7005ZVAT

Clock Generators & Support Products

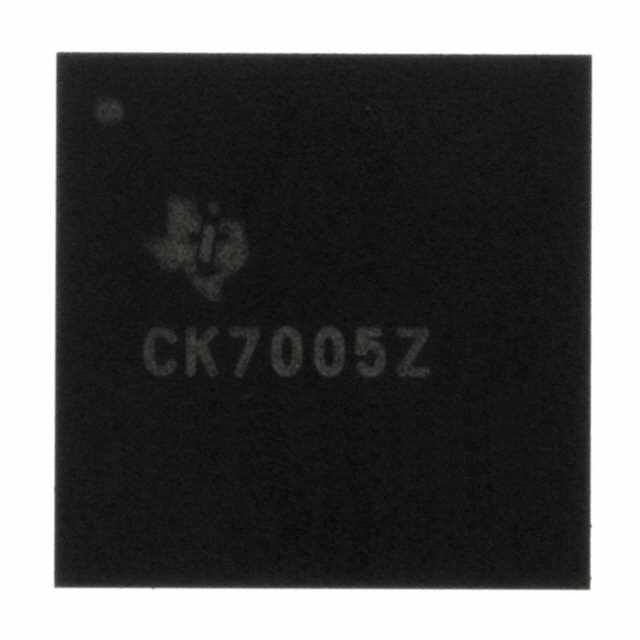

CDC7005ZVAT Description

The CDC7005ZVAT from Texas Instruments is a high-performance Clock Synchronizer and Jitter Cleaner designed for precision timing applications. This surface-mount IC operates within a 3V to 3.6V supply range and supports LVCMOS and LVPECL inputs with LVPECL outputs, ensuring robust signal integrity. With a maximum frequency of 800MHz, it offers exceptional synchronization capabilities for high-speed systems. The device features a 2:5 input-to-output ratio, enabling flexible clock distribution, and includes divider/multiplier functionality for frequency synthesis. Packaged in a 64-BGA format and compliant with ROHS3 and REACH standards, it is suitable for demanding industrial and commercial environments.

CDC7005ZVAT Features

• High-Speed Operation: Supports frequencies up to 800MHz, ideal for high-performance applications.
• Versatile I/O: LVCMOS/LVPECL inputs and LVPECL outputs ensure compatibility with diverse logic levels.
• Flexible Clock Management: 2:5 input-to-output ratio with divider/multiplier functionality for precise frequency control.
• Low Jitter: Enhances signal integrity in sensitive timing systems.
• Robust Packaging: 64-BGA (Tape & Reel) with MSL 3 (168 hours) moisture sensitivity, suitable for automated assembly.
• Compliance: ROHS3 and REACH compliant, meeting global environmental standards.

CDC7005ZVAT Applications

The CDC7005ZVAT excels in applications requiring low-jitter clock synchronization, such as:

• Telecommunications: Base stations and network timing cards.
• Data Centers: High-speed servers and switches.
• Test & Measurement: Precision instruments requiring stable clock signals.
• Industrial Systems: FPGA/ASIC clock distribution and synchronization.
  Its differential I/O and wide frequency range make it superior to simpler clock buffers, particularly in noise-sensitive or high-speed designs.

Conclusion of CDC7005ZVAT

The CDC7005ZVAT stands out as a high-reliability clock synchronizer, combining flexibility, performance, and compliance for advanced electronic systems. Its 800MHz capability, low jitter, and robust packaging make it a preferred choice for engineers designing telecom, data center, and industrial applications. For projects demanding precision timing and scalability, this IC delivers a competitive edge over conventional clocking solutions.

CDC7005ZVAT Documents

Download datasheets and manufacturer documentation for CDC7005ZVAT

Datasheets :

CDC7005
