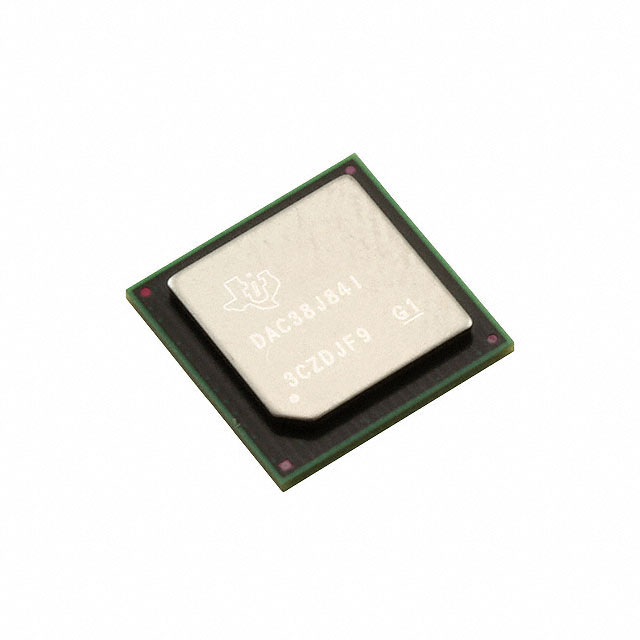

DAC38J84IAAV Description

The DAC38J84IAAV from Texas Instruments is a high-performance 16-bit, quad-channel digital-to-analog converter (DAC) designed for demanding applications requiring precision and speed. Packaged in a 144-pin FCBGA, this DAC features a JESD204B serial interface, enabling high-speed data transmission with reduced pin count. It supports both external and internal reference configurations, offering flexibility in system design. With a settling time of 10ns (Typ) and ±6 LSB INL / ±4 LSB DNL, it delivers exceptional linearity and dynamic performance. The device operates with dual power supplies: 3.15V–3.45V (analog) and 0.85V–0.95V (digital), optimizing power efficiency. Its current-source architecture ensures robust differential output performance, making it ideal for high-frequency signal generation.

DAC38J84IAAV Features

• 16-bit resolution with 4 D/A converters for multi-channel applications.
• JESD204B interface for high-speed, low-latency data transfer.
• Ultra-fast settling time (10ns Typ) for rapid signal response.
• Differential outputs with ±6 LSB INL / ±4 LSB DNL for high precision.
• Flexible reference options: External or internal reference support.
• Low-power dual-supply operation (0.85V–0.95V digital, 3.15V–3.45V analog).
• RoHS3 compliant and REACH unaffected, meeting environmental standards.
• Surface-mount 144-FCBGA package for compact, high-density PCB designs.

DAC38J84IAAV Applications

This DAC is particularly suited for applications requiring high-speed, high-resolution signal generation, such as:

• Wireless communication systems (5G, LTE, mmWave) for baseband signal synthesis.
• Radar and aerospace systems requiring precise waveform generation.
• Test and measurement equipment (arbitrary waveform generators, AWGs).
• Medical imaging systems (ultrasound, MRI) where high dynamic range is critical.
• High-performance audio/video processing for professional broadcast equipment.

Conclusion of DAC38J84IAAV

The DAC38J84IAAV stands out as a high-speed, multi-channel DAC with 16-bit precision, JESD204B compatibility, and low-power operation, making it a top choice for advanced digital signal processing systems. Its combination of fast settling time, excellent linearity, and flexible reference options ensures superior performance in telecom, defense, and industrial applications. For engineers seeking a reliable, high-performance DAC, this Texas Instruments device offers a compelling blend of speed, accuracy, and integration.
