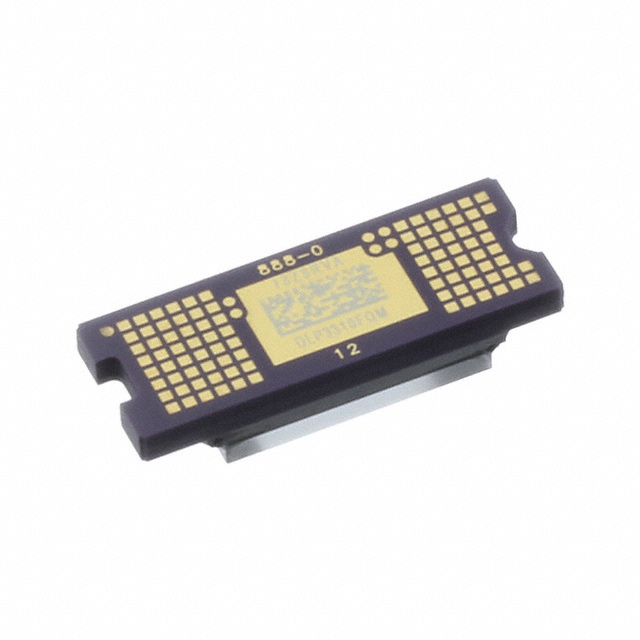

DLP3310FQM Description

The DLP3310FQM is a Digital Micromirror Device (DMD) manufactured by Texas Instruments, designed for high-performance display applications. This specialized IC is part of the DLP3310 family and is known for its advanced technology and robust performance. The DLP3310FQM features a surface mount package, making it suitable for integration into compact and space-constrained systems. It is housed in a tray package, ensuring safe and efficient handling during manufacturing processes.

This device is categorized under Specialized ICs and is ideal for applications requiring high-resolution displays. The DLP3310FQM is compliant with ROHS3 standards, ensuring it meets environmental regulations for hazardous substances. It has a moisture sensitivity level (MSL) of 1, indicating it is not sensitive to moisture and can be stored without special precautions.

DLP3310FQM Features

The DLP3310FQM offers several unique features that set it apart from similar models:

• Digital Micromirror Device (DMD) Technology: This technology allows for precise control of light reflection, enabling high-quality image projection.
• Surface Mount Compatibility: The surface mount design facilitates easy integration into modern electronic systems, reducing the overall footprint and enhancing reliability.
• ROHS3 Compliance: This ensures the product meets stringent environmental standards, making it suitable for a wide range of applications.
• Moisture Sensitivity Level 1: The MSL rating of 1 means the device can be stored and handled without the need for moisture-sensitive precautions, simplifying logistics and reducing costs.
• Tray Packaging: The tray packaging ensures the device is protected during transportation and storage, maintaining its integrity and performance.

DLP3310FQM Applications

The DLP3310FQM is ideal for a variety of applications, particularly those requiring high-resolution displays and precise light control. Some specific use cases include:

• Projection Displays: The DLP3310FQM is well-suited for high-quality projection systems, providing clear and vibrant images.
• Medical Imaging: In medical applications, the precise control of light reflection can enhance the clarity and accuracy of diagnostic images.
• Industrial Inspection: The device can be used in industrial settings for quality control and inspection processes, ensuring high-resolution imaging for detailed analysis.
• Education and Training: The DLP3310FQM can be utilized in educational settings for high-quality visual aids, enhancing the learning experience.

Conclusion of DLP3310FQM

The DLP3310FQM from Texas Instruments is a versatile and high-performance Digital Micromirror Device (DMD) that offers significant advantages for display applications. Its surface mount design, ROHS3 compliance, and moisture sensitivity level of 1 make it a reliable choice for modern electronic systems. While the product status is marked as obsolete, its technical specifications and performance benefits continue to make it a valuable component for specific applications. The DLP3310FQM remains a robust option for industries requiring precise light control and high-resolution imaging.

DLP3310FQM Documents

Download datasheets and manufacturer documentation for DLP3310FQM

Datasheets :

DLP3310 Datasheet

PCN Obsolescence/ EOL :

Mult Dev EOL 17/Oct/2018       DLPYYY REV 31/Jan/2019

HTML Datasheet :

DLP3310 Datasheet
