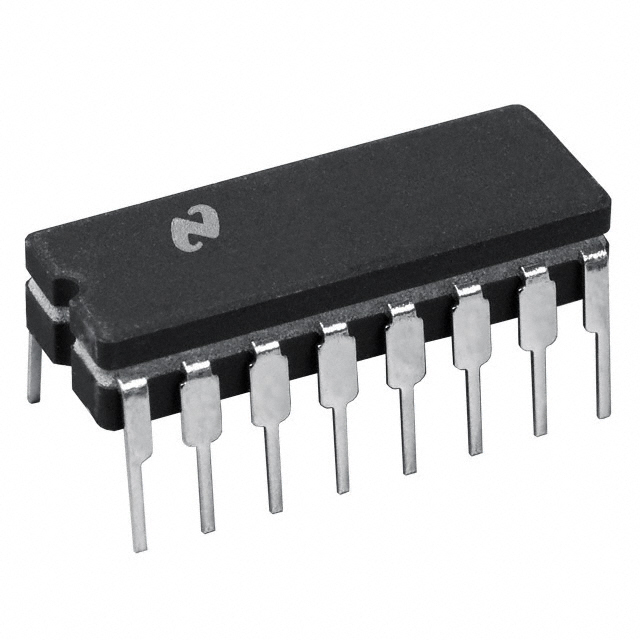

DS96F174CJ Description

The DS96F174CJ is a high-performance driver IC designed by Texas Instruments, specifically tailored for RS422 and RS485 communication protocols. This interface IC chip features 4 drivers and 0 receivers, making it an ideal solution for applications requiring robust data transmission at a data rate of up to 15Mbps. The DS96F174CJ operates within a supply voltage range of 4.75V to 5.25V, ensuring compatibility with a wide range of power supply configurations. It is housed in a through-hole package, specifically a tube, which provides enhanced mechanical stability and ease of integration into various electronic systems.

The DS96F174CJ is designed to function reliably within an operating temperature range of 0°C to 70°C, making it suitable for a variety of industrial and commercial environments. This IC is classified under the ECCN (Export Control Classification Number) EAR99, indicating that it is subject to minimal export restrictions. Additionally, it is REACH unaffected, ensuring compliance with stringent environmental regulations.

DS96F174CJ Features

• High Data Rate: The DS96F174CJ supports a data rate of up to 15Mbps, enabling fast and efficient data transmission for time-sensitive applications.
• Wide Operating Voltage Range: With a supply voltage range of 4.75V to 5.25V, the DS96F174CJ offers flexibility in power supply options, reducing the need for additional voltage regulation components.
• Robust Communication Protocols: The IC supports both RS422 and RS485 protocols, making it versatile for a wide range of industrial and commercial communication systems.
• Through-Hole Mounting: The through-hole package ensures secure mechanical attachment and is suitable for applications requiring high reliability and durability.
• Extended Temperature Range: The operating temperature range of 0°C to 70°C allows the DS96F174CJ to function effectively in various environmental conditions.
• Compliance and Safety: The DS96F174CJ is REACH unaffected and classified under ECCN EAR99, ensuring compliance with environmental and export regulations.

DS96F174CJ Applications

The DS96F174CJ is well-suited for applications that require reliable and high-speed data communication. Some specific use cases include:

• Industrial Automation: In industrial settings, the DS96F174CJ can be used to drive RS422 and RS485 communication lines, enabling efficient data transfer between PLCs (Programmable Logic Controllers), sensors, and actuators.
• Data Acquisition Systems: The high data rate and robust communication protocols make the DS96F174CJ ideal for data acquisition systems where real-time data transmission is critical.
• Telecommunications: The DS96F174CJ can be employed in telecommunication infrastructure for reliable data transmission over long distances.
• Automotive Systems: The DS96F174CJ can be integrated into automotive systems for communication between various electronic control units (ECUs).

Conclusion of DS96F174CJ

The DS96F174CJ from Texas Instruments is a versatile and high-performance driver IC designed for RS422 and RS485 communication protocols. Its key features, such as a high data rate, wide operating voltage range, and robust communication capabilities, make it an excellent choice for a variety of applications, including industrial automation, data acquisition systems, telecommunications, and automotive systems. Despite being marked as obsolete, the DS96F174CJ continues to offer reliable performance and remains a valuable component for engineers and designers seeking a dependable driver IC solution.
