Texas Instruments

LM4931ITL/NOPB

Audio Amplifiers

LM4931ITL/NOPB Description

The LM4931ITL/NOPB is a high-performance, Class D mono amplifier from Texas Instruments, designed to deliver exceptional audio quality and efficiency. This device is part of the renowned Boomer® series, known for its reliability and advanced features. The LM4931ITL/NOPB supports a maximum output power of 1.1W into an 8-ohm load and 26mW into a 32-ohm load, making it suitable for a variety of audio applications. It operates within a supply voltage range of 2.7V to 5V, ensuring compatibility with a wide range of power sources.

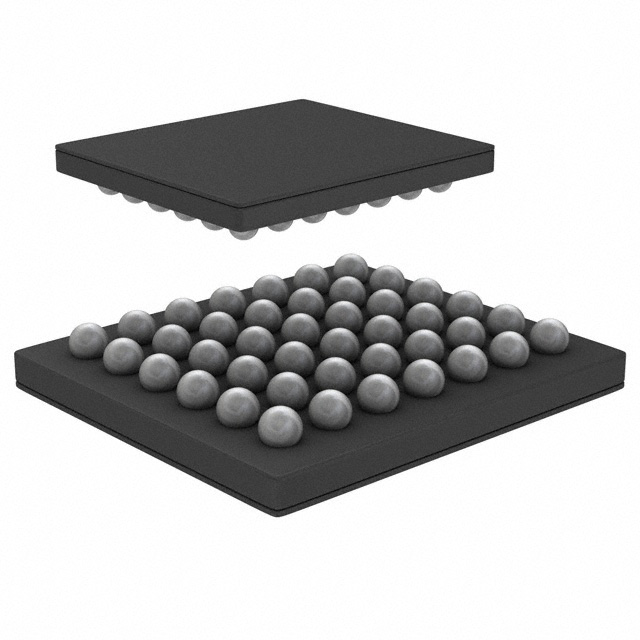

The LM4931ITL/NOPB is designed for surface-mount applications, offering a compact footprint that is ideal for space-constrained designs. It is available in a Tape & Reel (TR) package, facilitating efficient manufacturing processes. The device is REACH unaffected and RoHS3 compliant, adhering to stringent environmental standards. With a moisture sensitivity level (MSL) of 1 (unlimited), it is highly reliable and suitable for various environmental conditions.

LM4931ITL/NOPB Features

The LM4931ITL/NOPB boasts a comprehensive set of features that enhance its functionality and versatility. Key features include:

• Audio Processing: Equipped with ADC (Analog-to-Digital Converter) and DAC (Digital-to-Analog Converter), the LM4931ITL/NOPB can handle both analog and digital audio signals seamlessly.
• Control and Interface: The device supports I2C and SPI interfaces, enabling easy integration with microcontrollers and other digital systems. It also features I2S (Inter-IC Sound) for high-quality audio transmission.
• Power Management: The LM4931ITL/NOPB includes depop (de-population) functionality to reduce audible noise during power-up and power-down cycles. It also offers a shutdown mode to minimize power consumption when not in use.
• Audio Control: Features such as mute, standby, and volume control allow for precise audio management, enhancing user experience.
• Microphone Support: The LM4931ITL/NOPB supports microphone input, making it suitable for applications requiring voice capture and processing.
• PCM (Pulse Code Modulation): This feature ensures high-quality digital audio processing, maintaining fidelity across various applications.

LM4931ITL/NOPB Applications

The LM4931ITL/NOPB is ideal for a range of applications where high-quality audio output and efficient power management are critical. Its versatility makes it suitable for:

• Portable Devices: The compact size and low power consumption make it perfect for smartphones, tablets, and other portable electronics.
• Audio Accessories: Ideal for Bluetooth speakers, headphones, and other audio accessories requiring high-quality sound.
• Smart Home Devices: Suitable for smart speakers, voice assistants, and other IoT devices that require robust audio processing.
• Automotive Applications: The LM4931ITL/NOPB can be used in car infotainment systems, providing clear and powerful audio output.

Conclusion of LM4931ITL/NOPB

The LM4931ITL/NOPB from Texas Instruments is a versatile and high-performance Class D mono amplifier that offers a comprehensive set of features and benefits. Its ability to handle both analog and digital audio signals, combined with advanced power management and control features, makes it an excellent choice for a wide range of applications. The compact surface-mount package and compatibility with various power sources further enhance its appeal. Whether used in portable devices, audio accessories, smart home systems, or automotive applications, the LM4931ITL/NOPB delivers exceptional audio quality and reliability, making it a standout choice in the linear amplifier market.

LM4931ITL/NOPB Documents

Download datasheets and manufacturer documentation for LM4931ITL/NOPB

Datasheets :

LM4931

HTML Datasheet :

LM4931
