Texas Instruments

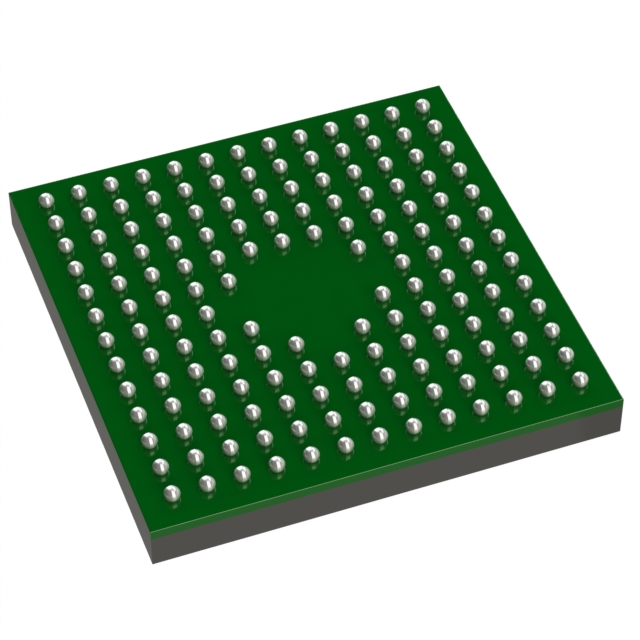

LM4F232H5BBFIGR

The LM4F232H5BBFIGR is a microcontroller unit (MCU) manufactured by Texas Instruments. It is part of the Stellaris family of ARM Cortex-M4F processors, which are designed for a wide range of applications that require high performance and low power consumption.

Description:

The LM4F232H5BBFIGR is a high-performance MCU with an integrated 128KB flash memory, 32KB static RAM, and a wide range of peripherals. It is based on the ARM Cortex-M4F processor, which features a floating-point unit (FPU) and supports real-time operating systems (RTOS). The MCU operates at a core frequency of up to 120 MHz and is built using a 40-nm process technology.

Features:

1. ARM Cortex-M4F processor with FPU, running at up to 120 MHz
2. 128KB on-chip flash memory
3. 32KB on-chip static RAM
4. Wide range of peripherals, including UART, SPI, I2C, USB, and CAN
5. Advanced control and communication interfaces, such as PWM, ADC, and comparators
6. Flexible clock management system
7. Low-power modes to optimize energy consumption
8. Security features, including a unique 128-bit device ID and secure boot options
9. Small package option: 100-pin TQFP (LM4F232H5BBFIGR)

Applications:

The LM4F232H5BBFIGR is suitable for various applications that require a combination of high performance, low power consumption, and a rich set of peripherals. Some potential applications include:

1. Industrial control systems
2. Medical devices and equipment
3. Portable and battery-powered devices
4. Home automation and smart appliances
5. Motor control and power management
6. Human-machine interface (HMI) devices
7. Data acquisition and signal processing systems
8. Communication gateways and protocol converters
9. Automotive control modules

The LM4F232H5BBFIGR's combination of processing power, memory, and peripherals makes it a versatile choice for a wide range of embedded applications, where both performance and energy efficiency are critical.
