Texas Instruments

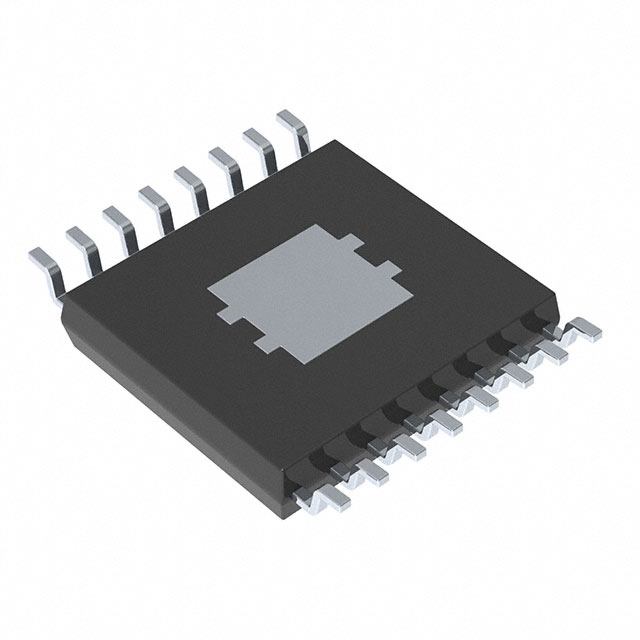

LM63635DQPWPRQ1

DC Switching Voltage Regulators

The LM63635DQPWPRQ1 is a high-efficiency step-down converter from Texas Instruments. It is designed to provide a stable and efficient power supply for a wide range of applications.

Description:

The LM63635DQPWPRQ1 is a highly integrated step-down converter that offers high efficiency and high performance in a compact package. It features a wide input voltage range, low quiescent current, and excellent load transient response. The device is available in a compact 20-pin QFN package.

Features:

• High efficiency up to 98%
• Wide input voltage range of 4.75V to 23V
• Low quiescent current of 3.2μA in burst mode
• Excellent load transient response
• Programmable soft-start
• Output voltage as low as 0.9V
• Protection features include over-current, over-temperature, and under-voltage lockout
• Available in a compact 20-pin QFN package

Applications:

The LM63635DQPWPRQ1 is suitable for a wide range of applications that require a highly efficient and stable power supply. Some of the key applications include:

1. Portable devices: The high efficiency and low quiescent current make it ideal for powering portable devices such as smartphones, tablets, and wearables.
2. Industrial equipment: The device's wide input voltage range and robust protection features make it suitable for use in industrial equipment that requires a stable power supply.
3. Automotive applications: The LM63635DQPWPRQ1 can be used in automotive applications such as infotainment systems, dashboard cameras, and advanced driver-assistance systems (ADAS).
4. Medical equipment: The device's high efficiency and low noise make it suitable for use in medical equipment that requires a stable and quiet power supply.

In summary, the LM63635DQPWPRQ1 is a highly efficient step-down converter from Texas Instruments that offers excellent performance and reliability in a compact package. It is suitable for a wide range of applications that require a stable and efficient power supply.

LM63635DQPWPRQ1 Documents

Download datasheets and manufacturer documentation for LM63635DQPWPRQ1

Datasheets :

LM63635-Q1

HTML Datasheet :

LM63635-Q1

PCN Design/Specification :

Mult PN PART MARKING 08/Dec/2023       Design 22/Feb/2022
