LMH6644 MDC Description

The LMH6644 MDC is a high-performance, quad-channel voltage feedback amplifier designed for demanding applications requiring wide bandwidth and high slew rates. Manufactured by Texas Instruments, this IC is part of the renowned LMH® series, known for its exceptional performance and reliability. The LMH6644 MDC operates from a supply voltage range of 2.7 V to 12.8 V, making it versatile for various power supply configurations. Each channel features a supply current of 2.7 mA, ensuring efficient power usage while maintaining high performance.

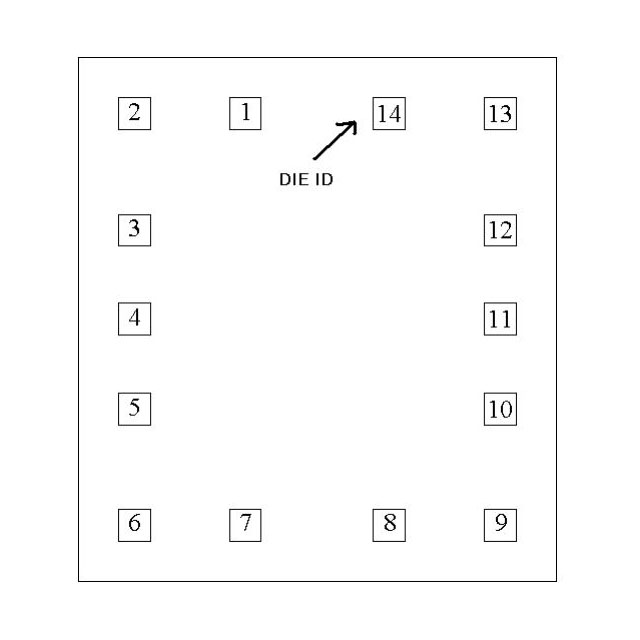

The LMH6644 MDC is packaged as a die, suitable for surface-mount applications, and is available in a tray format. This packaging option provides flexibility for integration into compact and high-density designs. The device is compliant with REACH and ROHS3 regulations, ensuring environmental safety and suitability for modern manufacturing processes. Additionally, it has a moisture sensitivity level (MSL) of 1, making it suitable for unlimited exposure to standard environmental conditions.

LMH6644 MDC Features

• Wide Supply Voltage Range The: LMH6644 MDC operates from 2.7 V to 12.8 V, providing flexibility for various power supply configurations.
• High Bandwidth and Slew Rate: With a -3 dB bandwidth of 130 MHz and a slew rate of 135 V/µs, the LMH6644 MDC ensures high-speed signal processing and minimal distortion.
• Low Input Bias Current: The input bias current of 1.6 µA minimizes the impact on sensitive input signals, making it ideal for high-impedance applications.
• Low Input Offset Voltage: The1 mV input offset voltage ensures accurate signal amplification and reduces errors in precision applications.
• High Output Current: Each channel can deliver up to 75 mA, enabling robust drive capabilities for demanding loads.
• Quad-Channel Configuration: The LMH6644 MDC features four independent channels, allowing for compact and efficient multi-channel signal processing.
• Environmental Compliance: The device is REACH unaffected and ROHS3 compliant, ensuring it meets the highest environmental standards.
• Moisture Sensitivity Level: MSL 1 (Unlimited) ensures the device can withstand standard environmental conditions degradation without.

LMH6644 MDC Applications

The LMH6644 MDC is ideal for a variety of high-speed and high-precision applications, including:

• High-Speed Signal Processing: The wide bandwidth and high slew rate make it suitable for applications requiring rapid signal processing, such as high-speed ADC and DAC interfaces.
• Video Signal Amplification: The LMH6644 MDC’s performance characteristics are well-suited for video signal amplification, ensuring high-quality video transmission with minimal distortion.
• Precision Instrumentation: The low input offset voltage and low input bias current make it ideal for precision instrumentation applications where signal integrity is critical.
• Communication Systems: The high output current and wide supply voltage range enable robust performance in communication systems, ensuring reliable signal transmission.
• Medical Equipment: The device’s high performance and environmental compliance make it suitable for use in medical equipment where precision and reliability are paramount.

Conclusion of LMH6644 MDC

The LMH6644 MDC from Texas Instruments is a versatile and high-performance quad-channel voltage feedback amplifier designed to meet the demands of modern electronic systems. Its wide supply voltage range, high bandwidth, and high slew rate make it suitable for a variety of applications, from high-speed signal processing to precision instrumentation. The low input bias current and low input offset voltage ensure accurate signal amplification, while the high output current capability provides robust drive capabilities. With its environmental compliance and moisture sensitivity level, the LMH6644 MDC is a reliable choice for designers seeking a-performance high solution in a compact and efficient package.
