Texas Instruments

OPA1656ID

OPA1656ID Description

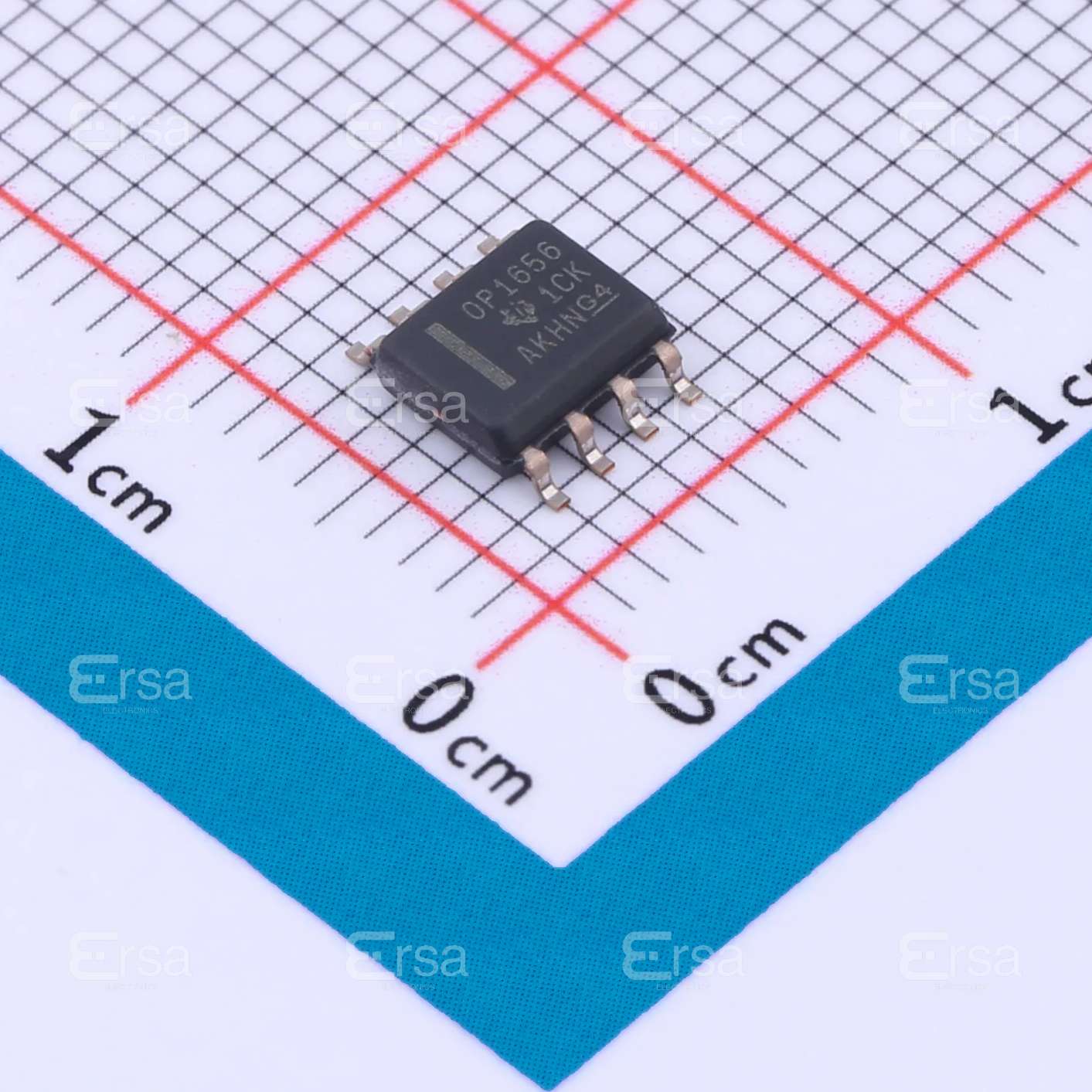

The OPA1656ID from Texas Instruments is a high-performance, dual-channel audio operational amplifier designed for precision audio applications. Packaged in an 8-SOIC tube, this ROHS3 Compliant and REACH Unaffected IC operates over a wide supply voltage range of 4.5V to 36V, making it versatile for both portable and industrial systems. With an ultra-low input bias current of 10 pA and a minimal input offset voltage of 500 µV, it ensures high signal fidelity and accuracy. The OPA1656ID is ideal for audio signal chains, offering 53 MHz gain bandwidth product and a slew rate of 24V/µs for dynamic performance. Its 3.9mA per channel supply current balances power efficiency with high output drive capability (100 mA per channel).

OPA1656ID Features

• Ultra-Low Noise & Distortion: Optimized for high-fidelity audio with minimal signal degradation.
• Wide Supply Range (4.5V–36V): Supports diverse applications from battery-powered devices to industrial systems.
• High Output Current (100 mA): Drives low-impedance loads without external buffering.
• Low Input Bias Current (10 pA): Reduces errors in high-impedance sensor interfaces.
• 53 MHz GBW & 24V/µs Slew Rate: Ensures fast response and bandwidth for demanding audio/measurement tasks.
• Dual-Channel Design: Space-efficient solution for stereo or differential signal processing.

OPA1656ID Applications

• Professional Audio Equipment: Mixers, DACs, and headphone amplifiers benefit from low noise and high drive.
• Active Filters & Precision Instrumentation: High GBW and slew rate enable accurate signal conditioning.
• Portable Audio Devices: Low power consumption extends battery life in wireless speakers or portable DACs.
• Industrial Control Systems: Robust performance in harsh environments due to wide voltage tolerance.
• Medical Audio Devices: Ultra-low bias current ensures precision in sensitive biomedical signal chains.

Conclusion of OPA1656ID

The OPA1656ID stands out as a high-performance audio op-amp combining low noise, wide bandwidth, and robust drive capability. Its dual-channel integration and flexible supply range make it a top choice for designers seeking to optimize audio fidelity and system efficiency. Whether in consumer, industrial, or medical applications, this amplifier delivers exceptional signal integrity while adhering to stringent environmental and regulatory standards.
