Texas Instruments

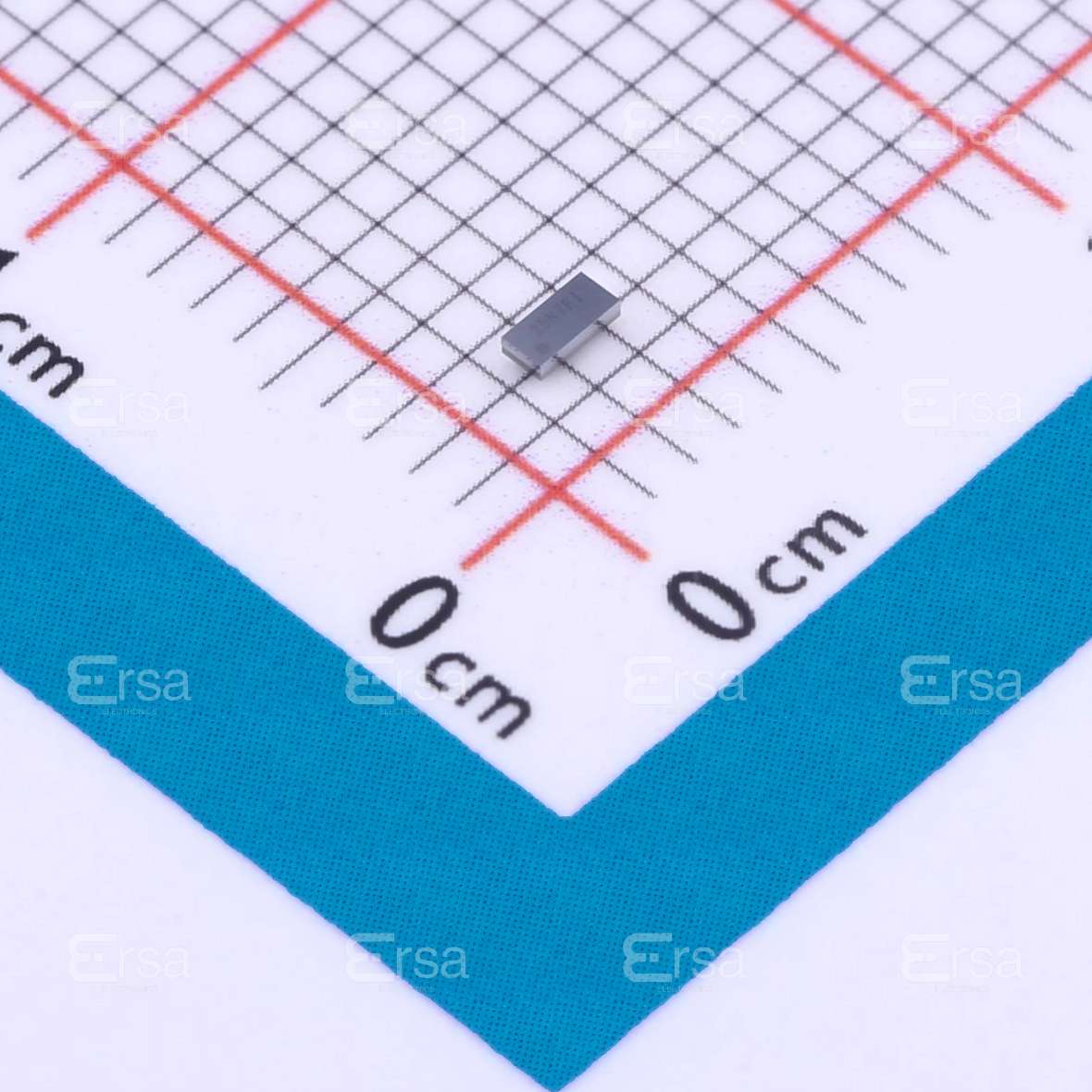

PCA9306YZTR

The PCA9306YZTR is a high-performance, low-voltage, I2C bus and SMBus voltage translator from Texas Instruments. It is designed to translate and buffer voltage levels between different I2C bus systems, allowing for seamless communication between devices operating at different voltage levels.

Description:

The PCA9306YZTR is a monolithic translator that provides a bidirectional translation between I2C bus systems operating at different voltage levels. It can translate and buffer voltage levels between 1.7V to 5.5V on the I2C bus, making it suitable for a wide range of applications.

Features:

1. Bidirectional translation between I2C bus systems operating at different voltage levels.
2. Supports I2C bus speeds up to 400kHz.
3. Wide input voltage range of 1.7V to 5.5V.
4. Low power consumption, ideal for battery-powered applications.
5. Small package size, making it suitable for space-constrained applications.
6. Provides a high level of noise immunity, ensuring reliable communication in noisy environments.

Applications:

The PCA9306YZTR is suitable for a wide range of applications where I2C bus voltage translation is required. Some of the key applications include:

1. Automotive applications, such as infotainment systems, sensor interfaces, and body control modules.
2. Industrial control systems, where devices operating at different voltage levels need to communicate over the same I2C bus.
3. Consumer electronics, such as smartphones, tablets, and wearable devices, where different components may operate at different voltage levels.
4. Medical equipment, where reliable communication between devices is critical.
5. IoT devices, where different sensors and components may require different voltage levels.

In summary, the PCA9306YZTR from Texas Instruments is a versatile and high-performance I2C bus and SMBus voltage translator that can be used in a wide range of applications to ensure seamless communication between devices operating at different voltage levels. Its low power consumption, wide input voltage range, and small package size make it an ideal choice for space-constrained and battery-powered applications.
