Texas Instruments

PTV12010LAH

External/Internal DC DC Converters

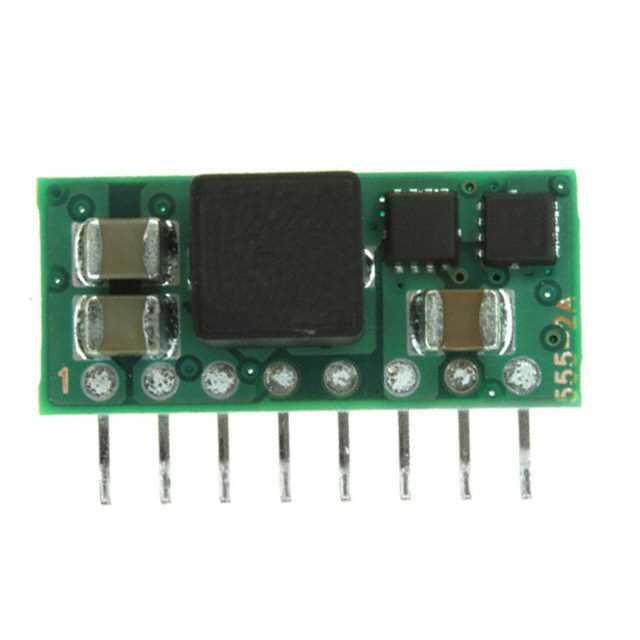

PTV12010LAH Description

The PTV12010LAH from Texas Instruments is a high-efficiency, single-output DC-DC converter designed for demanding commercial and industrial applications. Operating within an input voltage range of 10.8V to 13.2V, it delivers a regulated output voltage adjustable from 0.8V to 1.8V with a robust 8A maximum current capacity. Housed in a compact through-hole package (22.9mm x 8.4mm x 10.2mm), this converter is part of the PTV12010 series, offering a balance of power density and reliability. With an impressive 87% efficiency, it minimizes energy loss, making it ideal for power-sensitive designs. Compliant with ROHS3 and REACH Unaffected standards, it ensures environmental and regulatory adherence.

PTV12010LAH Features

• Wide Input Range: Supports 10.8V–13.2V, accommodating fluctuations in power sources.
• High Current Output: Delivers up to 8A, suitable for powering high-performance processors and FPGAs.
• Adjustable Output: 0.8V–1.8V range enables flexibility for low-voltage logic and memory applications.
• Ultra-Low Voltage Lockout (UVLO): Protects against undervoltage conditions, enhancing system reliability.
• Compact Footprint: 22.9mm x 8.4mm x 10.2mm size optimizes board space in dense layouts.
• High Efficiency (87%): Reduces thermal dissipation, improving longevity and performance.
• Commercial-Grade: Designed for ITE (Commercial) applications with MSL: Not Applicable, simplifying storage and handling.

PTV12010LAH Applications

• Server/Data Center Equipment: Powers low-voltage ASICs and memory modules with high current demands.
• Telecommunications Infrastructure: Ideal for base stations and networking hardware requiring stable, efficient power conversion.
• Industrial Automation: Supports PLCs, motor controllers, and embedded systems with tight voltage tolerances.
• Test & Measurement Devices: Ensures precise voltage regulation for sensitive instrumentation.
• Embedded Computing: Suitable for single-board computers (SBCs) and FPGA-based designs.

Conclusion of PTV12010LAH

The PTV12010LAH stands out as a high-efficiency, high-current DC-DC converter tailored for commercial and industrial power systems. Its adjustable output, compact form factor, and robust protection features make it a superior choice over fixed-output or lower-current alternatives. Whether deployed in data centers, telecom, or industrial automation, this converter delivers reliable performance, regulatory compliance, and energy savings, solidifying its position as a versatile solution for modern electronics.

PTV12010LAH Documents

Download datasheets and manufacturer documentation for PTV12010LAH

Datasheets :

PTV12010L,W

HTML Datasheet :

PTV12010L,W
