Texas Instruments

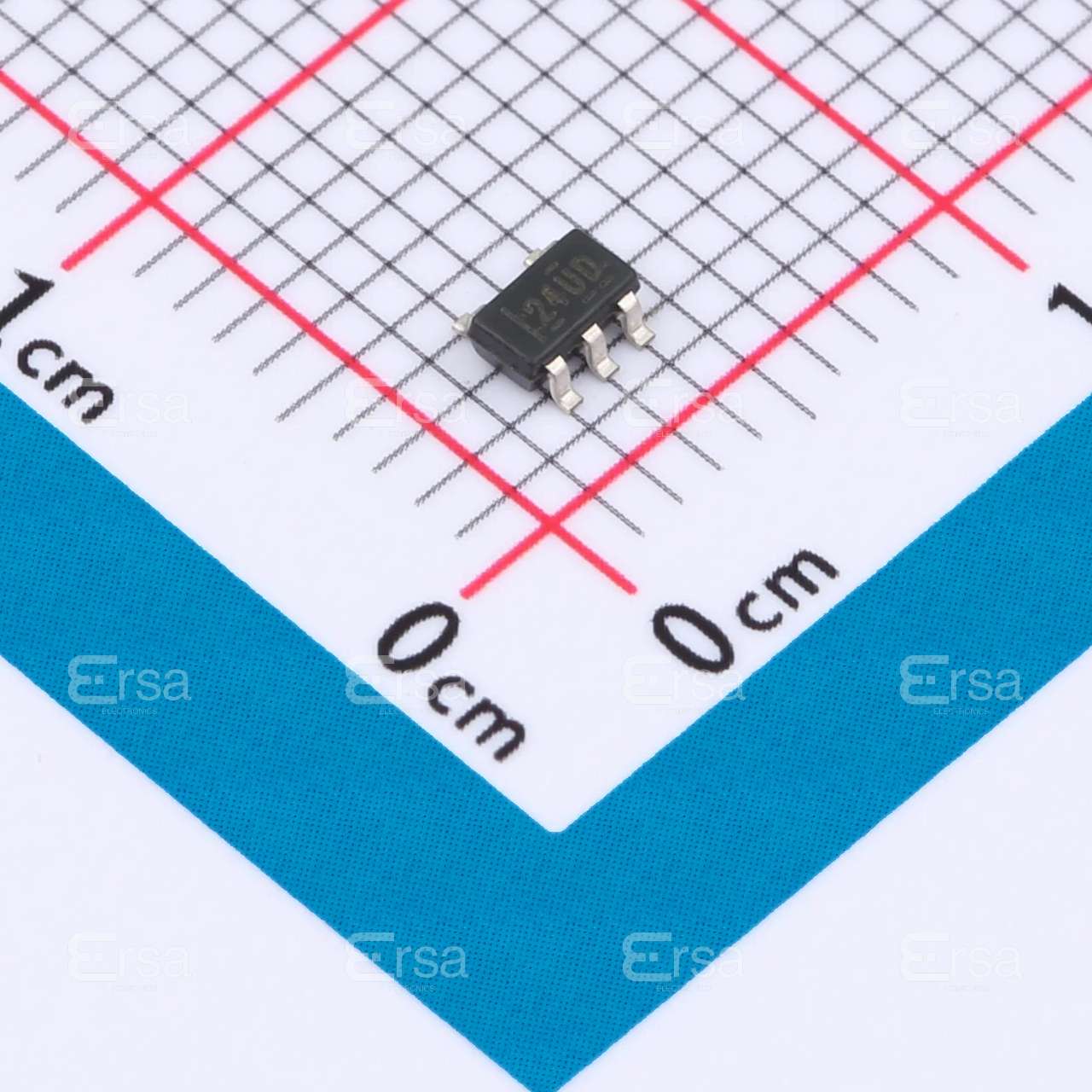

REF4132B33DBVR

Voltage References

REF4132B33DBVR Description

The REF4132B33DBVR is a precision voltage reference IC from Texas Instruments, designed to deliver highly accurate and stable reference voltages for a variety of electronic applications. This series voltage reference features a fixed output voltage of 3.3V with an exceptional tolerance of ±0.05%, ensuring precise and reliable performance. The device operates within an input voltage range of 3.35V to 5.5V, making it suitable for systems requiring a stable reference voltage even under varying input conditions.

REF4132B33DBVR Features

• Precision Output Voltage: The REF4132B33DBVR provides a fixed output voltage of 3.3V with a tight tolerance of ±0.05%, ensuring high accuracy in voltage reference applications.
• Low Noise: With a noise level of 24µVrms over the 10Hz to 10kHz frequency range, this voltage reference offers superior performance in noise-sensitive applications, minimizing signal interference.
• Low Temperature Coefficient: The device has a temperature coefficient of 30ppm/°C, ensuring stable performance across a wide temperature range, which is crucial for maintaining accuracy in varying environmental conditions.
• Low Supply Current: The REF4132B33DBVR consumes only 100µA of supply current, making it energy-efficient and suitable for low-power applications.
• Surface Mount Packaging: The SOT23-5 package type allows for easy integration into compact designs, making it ideal for space-constrained applications.
• Compliance and Reliability: The device is REACH unaffected and RoHS3 compliant, ensuring environmental safety and reliability. It also has a moisture sensitivity level (MSL) of 2 (1 Year), making it suitable for standard manufacturing processes.

REF4132B33DBVR Applications

The REF4132B33DBVR is ideal for applications requiring high precision and stability in voltage reference. Some specific use cases include:

• Analog-to-Digital Converters (ADCs): Provides a stable reference voltage to ensure accurate conversion of analog signals to digital form.
• Digital-to-Analog Converters (DACs): Ensures precise output voltage levels for accurate analog signal generation.
• Precision Measurement Equipment: Used in devices such as multimeters and oscilloscopes to provide a stable reference for accurate measurements.
• Power Management Systems: Offers a reliable reference voltage for voltage regulators and power supply circuits.
• Medical and Industrial Equipment: Ensures high accuracy and stability in critical applications where precision is paramount.

Conclusion of REF4132B33DBVR

The REF4132B33DBVR from Texas Instruments stands out as a high-performance voltage reference IC, offering exceptional accuracy, low noise, and stable performance across varying conditions. Its low supply current and compact surface mount package make it suitable for a wide range of applications, from precision measurement equipment to power management systems. The device's compliance with environmental standards and reliability further enhance its appeal. For designers seeking a reliable and precise voltage reference, the REF4132B33DBVR is an excellent choice.

REF4132B33DBVR Documents

Download datasheets and manufacturer documentation for REF4132B33DBVR

PCN Assembly/Origin :

Additional Assembly sites 21/Sep/2021

Datasheets :

REF4132
