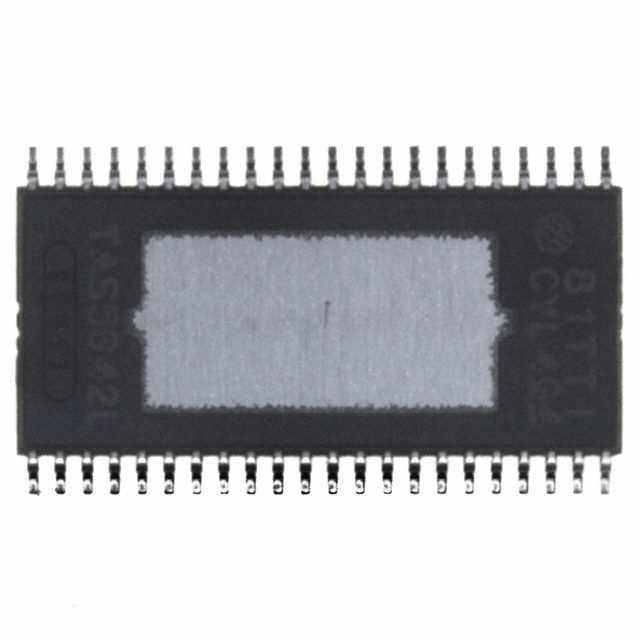

TAS5342LDDVR Description

The TAS5342LDDVR is a high-performance, Class D monolithic amplifier designed for demanding audio applications. Manufactured by Texas Instruments, this device is part of the PurePath Digital™ series, renowned for its advanced audio processing capabilities. The TAS5342LDDVR is designed to deliver exceptional sound quality and efficiency, making it ideal for a variety of audio systems.

TAS5342LDDVR Features

• High Output Power: The TAS5342LDDVR offers a maximum output power of 200W at a 2-ohm load and 100W at a 4-ohm load, ensuring robust performance in various audio applications.
• Efficient Power Consumption: With a supply voltage range of 10.8V to 13.2V, the amplifier is designed to operate efficiently, minimizing power loss and heat generation.
• Surface Mount Technology: The surface mount package type allows for easy integration into compact and space-constrained designs.
• Wide Operating Temperature Range: The device operates reliably within a temperature range of 0°C to 70°C, making it suitable for a variety of environmental conditions.
• Compliance and Safety: The TAS5342LDDVR is REACH unaffected and RoHS3 compliant, ensuring it meets stringent environmental and safety standards. It also has a moisture sensitivity level (MSL) of 3, allowing for 168 hours of exposure before assembly.
• Packaging: The device is packaged in a tape and reel format (TR), facilitating automated assembly processes and ensuring consistent handling and storage.

TAS5342LDDVR Applications

The TAS5342LDDVR is ideal for a range of applications where high-fidelity audio output and efficient power management are critical. Its high output power and efficient design make it particularly suitable for:

• Automotive Audio Systems: Providing high-quality sound in compact car audio setups.
• Home Theater Systems: Delivering powerful audio performance in home entertainment systems.
• Professional Audio Equipment: Enhancing sound quality in professional audio applications such as amplifiers and sound systems.
• Portable Audio Devices: Ensuring efficient power usage and high-quality audio output in portable devices.

Conclusion of TAS5342LDDVR

The TAS5342LDDVR from Texas Instruments is a versatile and powerful Class D amplifier that offers significant advantages over similar models. Its high output power, efficient power consumption, and wide operating temperature range make it suitable for a variety of demanding audio applications. The device's compliance with environmental and safety standards, along with its surface mount packaging, ensures ease of integration and reliability. While it is marked as "Not For New Designs," the TAS5342LDDVR remains a valuable option for existing projects and applications requiring high-performance audio amplification.
