Texas Instruments

TL2575-05IKV

DC Switching Voltage Regulators

TL2575-05IKV Description

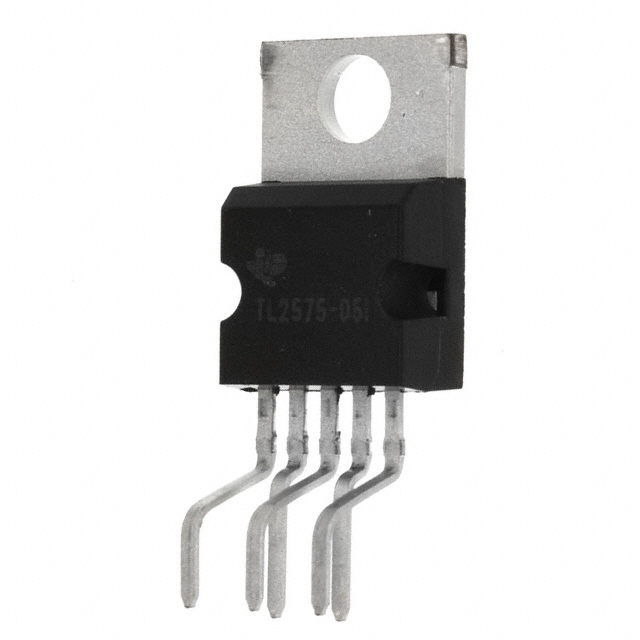

The TL2575-05IKV is a fixed output, positive buck switching voltage regulator designed by Texas Instruments. This regulator is part of the DC Switching Voltage Regulators category and is ideal for applications requiring a stable 5V output at up to 1A of current. The TL2575-05IKV operates within an input voltage range of 4.75V to 40V, making it suitable for a variety of power supply scenarios. Its switching frequency is set at 52kHz, ensuring efficient power conversion and minimal noise. The regulator is housed in a through-hole TO220-5 package, which is known for its robustness and ease of integration into various electronic systems. The product is REACH unaffected and ROHS3 compliant, adhering to stringent environmental and safety standards. Additionally, the TL2575-05IKV is classified under ECCN EAR99 and HTSUS 8542.39.0001, indicating its compliance with international trade regulations.

TL2575-05IKV Features

• Fixed Output Voltage: The TL2575-05IKV provides a stable 5V output, ensuring consistent power supply to connected devices.
• Wide Input Voltage Range: With an input range of 4.75V to 40V, this regulator can handle a variety of input sources, making it versatile for different applications.
• High Efficiency: Operating at a switching frequency of 52kHz, the TL2575-05IKV ensures efficient power conversion, reducing energy loss and improving overall system efficiency.
• Robust Packaging: The through-hole TO220-5 package offers mechanical durability and ease of integration into various electronic systems.
• Environmental Compliance: The regulator is REACH unaffected and ROHS3 compliant, ensuring it meets environmental and safety standards.
• Single Output Configuration: The TL2575-05IKV is designed with a single output, simplifying the power supply design for applications requiring a single regulated voltage.

TL2575-05IKV Applications

The TL2575-05IKV is well-suited for a range of applications where a stable 5V output is required. Some specific use cases include:

• Consumer Electronics: Ideal for powering devices such as USB chargers, portable speakers, and other consumer electronics that require a stable 5V supply.
• Industrial Equipment: Suitable for industrial applications where a reliable power supply is crucial, such as in control systems and instrumentation.
• Telecommunications: Can be used in telecommunication equipment where a stable power supply is necessary for consistent performance.
• Automotive: Applicable in automotive systems where a wide input voltage range and stable output are required, such as in dashboard electronics and infotainment systems.

Conclusion of TL2575-05IKV

The TL2575-05IKV from Texas Instruments is a reliable and efficient buck switching voltage regulator designed to provide a stable 5V output at up to 1A of current. Its wide input voltage range, high efficiency, and robust packaging make it an ideal choice for a variety of applications, from consumer electronics to industrial equipment. The regulator's compliance with environmental and safety standards ensures it meets the requirements of modern electronics manufacturing. With its fixed output voltage and single output configuration, the TL2575-05IKV simplifies power supply design while maintaining high performance.

TL2575-05IKV Documents

Download datasheets and manufacturer documentation for TL2575-05IKV

Datasheets :

TL2575, TL2575HV

HTML Datasheet :

TL2575, TL2575HV
