Texas Instruments

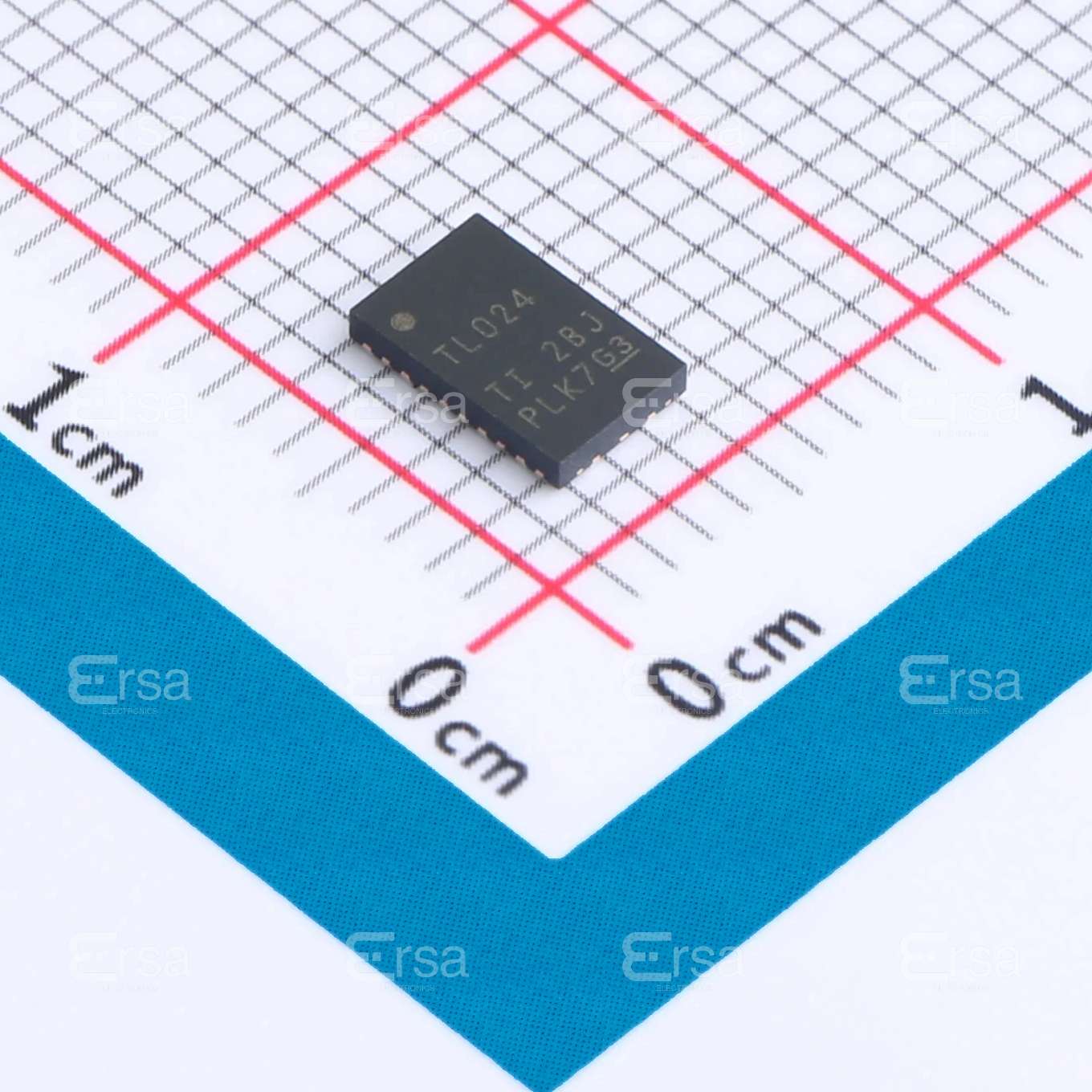

TLIN1024RGYRQ1

TLIN1024RGYRQ1 Description

The TLIN1024RGYRQ1 is a high-performance LINbus transceiver designed and manufactured by Texas Instruments. This 4-driver/4-receiver IC is specifically tailored for automotive applications, offering robust performance and reliability in harsh environments. With a data rate of 20kbps and a supply voltage range of 4V to 36V, the TLIN1024RGYRQ1 is well-suited for various automotive communication systems.

TLIN1024RGYRQ1 Features

• Robust LINbus Protocol Support: The TLIN1024RGYRQ1 supports the LINbus protocol, a widely used communication standard in the automotive industry. This ensures seamless integration with existing automotive networks.
• High Receiver Hysteresis: With a receiver hysteresis of 200mV, the TLIN1024RGYRQ1 offers improved noise immunity, ensuring reliable signal transmission even in noisy environments.
• Wide Voltage Range: The 4V to 36V supply voltage range makes the TLIN1024RGYRQ1 compatible with a wide range of automotive power systems.
• Surface Mount Technology: The surface mount packaging of the TLIN1024RGYRQ1 allows for compact and efficient PCB layout, reducing overall system size and weight.
• Automotive Grade: Designed to meet the stringent requirements of the automotive industry, the TLIN1024RGYRQ1 offers excellent performance and reliability in harsh automotive environments.
• Compliance with Regulations: The TLIN1024RGYRQ1 is REACH unaffected and RoHS3 compliant, ensuring compliance with environmental and safety regulations.

TLIN1024RGYRQ1 Applications

The TLIN1024RGYRQ1 is ideal for various automotive applications where reliable and efficient communication is critical. Some specific use cases include:

• In-Vehicle Networking: The TLIN1024RGYRQ1 can be used in in-vehicle networks for communication between various electronic control units (ECUs), such as engine control, body control, and infotainment systems.
• Sensor Communication: This transceiver is well-suited for communication with various sensors in the vehicle, such as temperature, pressure, and position sensors, enabling accurate and reliable data transmission.
• Actuator Control: The TLIN1024RGYRQ1 can be used to control various actuators in the vehicle, such as motor drivers and solenoid valves, ensuring precise and efficient operation.

Conclusion of TLIN1024RGYRQ1

The TLIN1024RGYRQ1 is a versatile and reliable LINbus transceiver designed for automotive applications. Its robust performance, wide voltage range, and compliance with automotive standards make it an ideal choice for various in-vehicle communication systems. With its unique features and advantages, the TLIN1024RGYRQ1 stands out as a preferred solution for automotive manufacturers looking to enhance their vehicle's communication capabilities.
