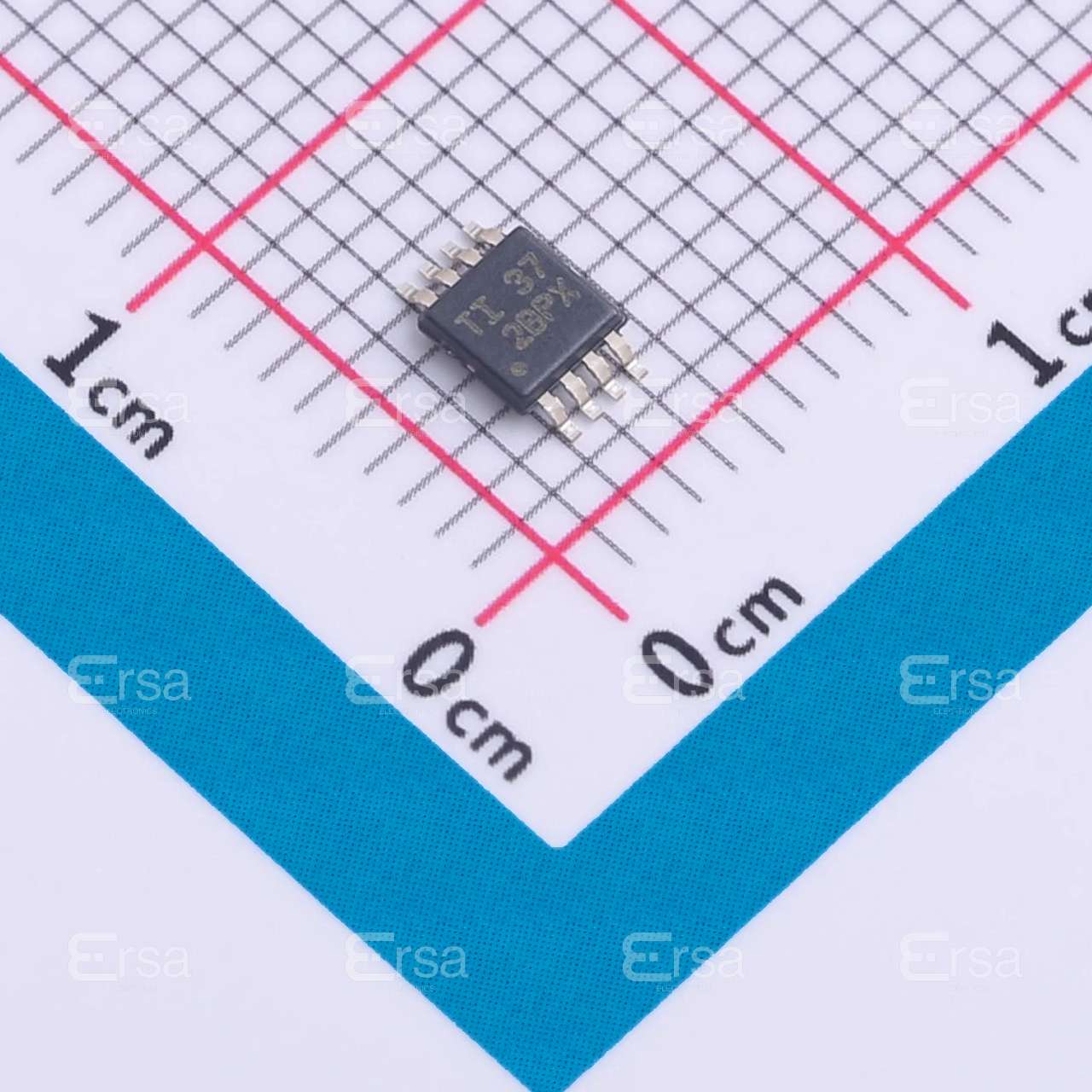

TLV76750DGNR

Linear & Switching Voltage Regulators

TLV76750DGNR Description

The TLV76750DGNR is a high-performance linear regulator designed for applications requiring a stable and efficient power supply. Manufactured by Texas Instruments, this device is part of the Power Management Integrated Circuits (PMIC) category and is ideal for a wide range of electronic systems. The TLV76750DGNR features a fixed output voltage of 5V and can deliver up to 1A of output current. It operates with an input voltage range up to 16V, making it suitable for various power supply applications. The regulator is housed in an 8-pin high voltage small outline package (HVSSOP), which is ideal for surface mount applications.

TLV76750DGNR Features

• Output Type: Fixed at 5V, ensuring a stable power supply for connected devices.
• Input Voltage Range: Capable of handling input voltages up to 16V, providing flexibility in power source selection.
• Output Current: Delivers up to 1A, sufficient for powering a variety of electronic components.
• Voltage Dropout: A maximum dropout voltage of 1.5V at 1A ensures efficient operation even at lower input voltages.
• Low Quiescent Current: With a quiescent current of only 95 µA, the TLV76750DGNR minimizes power consumption in standby mode.
• Control Features: Includes current limit, enable, and soft start capabilities, allowing for precise control over the power supply.
• Protection Features: Over current protection, over temperature protection, and under voltage lockout (UVLO) ensure reliable operation and protect against potential faults.
• Moisture Sensitivity Level: MSL 2 (1 Year) indicates the device's resistance to moisture, enhancing its durability in various environmental conditions.
• Mounting Type: Surface mount technology (SMT) facilitates easy integration into compact and high-density PCB designs.
• Package Type: Tape & Reel (TR) packaging simplifies the manufacturing process and ensures reliable component handling.

TLV76750DGNR Applications

The TLV76750DGNR is well-suited for a variety of applications where a stable and efficient power supply is crucial. Some specific use cases include:

• Consumer Electronics: Ideal for powering devices such as smartphones, tablets, and portable gaming consoles, where a reliable 5V supply is essential.
• Industrial Equipment: Suitable for industrial control systems, sensors, and actuators that require a stable power source to operate efficiently.
• Telecommunications: Can be used in base stations, routers, and other networking equipment to provide a consistent power supply.
• Automotive Systems: Applicable in automotive electronics, such as infotainment systems and advanced driver assistance systems (ADAS), where reliability and efficiency are paramount.
• Medical Devices: Ideal for medical equipment like diagnostic tools and monitoring devices, ensuring precise power delivery and reliable operation.

Conclusion of TLV76750DGNR

The TLV76750DGNR from Texas Instruments stands out as a robust and efficient linear regulator, offering a fixed 5V output with a maximum input voltage of 16V and a 1A output current capability. Its low dropout voltage and low quiescent current make it an energy-efficient choice, while its comprehensive protection features ensure reliable operation in various conditions. The device's surface mount packaging and compatibility with tape & reel manufacturing processes make it easy to integrate into modern electronic designs. Whether used in consumer electronics, industrial systems, telecommunications, automotive applications, or medical devices, the TLV76750DGNR provides stable a and efficient power supply solution that meets the demands of today's high-performance electronic systems.

TLV76750DGNR Documents

Download datasheets and manufacturer documentation for TLV76750DGNR
