Texas Instruments

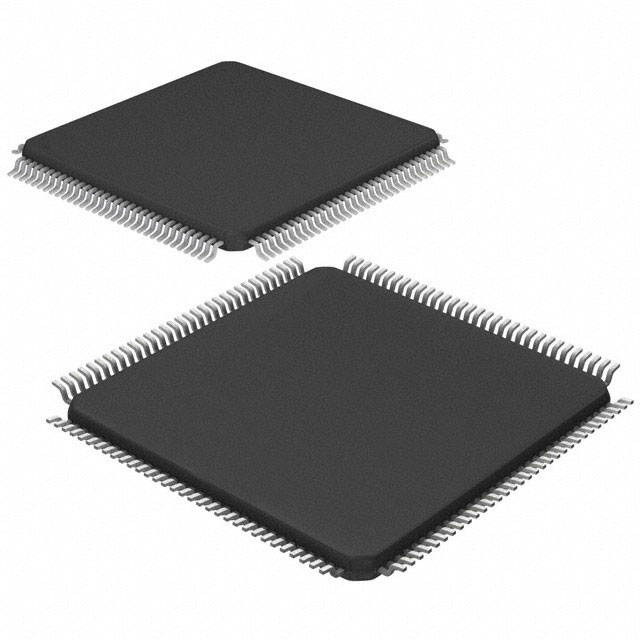

TM4C1294NCPDTI3

Microcontrollers

The Texas Instruments TM4C1294NCPDTI3 is a high-performance microcontroller belonging to the Tiva C Series. This microcontroller is designed for a wide range of applications, including industrial control, automotive, and consumer electronics. Here's a description of the TM4C1294NCPDTI3, including its features and applications:

Description:

The TM4C1294NCPDTI3 is a 32-bit ARM Cortex-M4F microcontroller with a floating-point unit (FPU) and an integrated 1MB on-chip flash memory. It operates at a maximum clock speed of 120 MHz, providing high performance and real-time processing capabilities. The microcontroller features a rich set of peripherals and communication interfaces, making it suitable for various applications.

Features:

1. ARM Cortex-M4F core with FPU, operating at up to 120 MHz
2. 1MB on-chip flash memory and 256KB SRAM
3. Advanced peripherals, including UART, SPI, I2C, CAN, USB, Ethernet, and uDMA
4. High-resolution PWM modules for motor control and signal generation
5. Flexible clock management with PLL and internal/external clock sources
6. Enhanced security features, including secure boot and flash encryption
7. Low-power modes to optimize power consumption
8. Integrated 12-bit ADC with up to 32 channels
9. Flexible debug interface with SWD and JTAG support
10. Wide operating voltage range (1.71V to 3.6V)

Applications:

1. Industrial control systems: The TM4C1294NCPDTI3 can be used in motor control, sensor interfacing, and data acquisition applications.
2. Automotive: The microcontroller is suitable for in-vehicle networking, body control, and powertrain control applications.
3. Consumer electronics: The TM4C1294NCPDTI3 can be used in smart appliances, home automation, and portable devices.
4. Medical devices: The microcontroller can be employed in medical equipment, such as monitoring systems and diagnostic devices.
5. Communication infrastructure: The TM4C1294NCPDTI3 can be used in networking equipment, such as routers, switches, and gateways.
6. Human-machine interface (HMI) systems: The microcontroller can be utilized in touch screen displays and control panels for various applications.
7. Embedded vision systems: The TM4C1294NCPDTI3 can be used in image processing and machine vision applications.

In summary, the Texas Instruments TM4C1294NCPDTI3 is a versatile and high-performance microcontroller with a wide range of features and applications. Its powerful ARM Cortex-M4F core, extensive peripheral set, and advanced security features make it an ideal choice for various embedded systems.

TM4C1294NCPDTI3 Documents

Download datasheets and manufacturer documentation for TM4C1294NCPDTI3

Errata :

TM4C129x Silicon Errata

PCN Assembly/Origin :

Mult Devices 23/Feb/2018

Datasheets :

TM4C1294NCPDT

PCN Packaging :

Mult Dev 13/Apr/2020       Mult Dev Rev 27/Apr/2020
