Texas Instruments

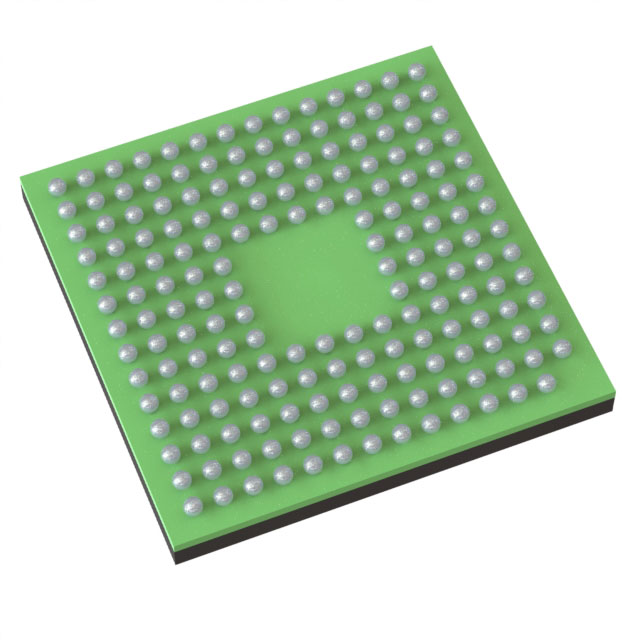

TMS320F28335ZAYAR

Microcontrollers

Texas Instruments TMS320F28335ZAYAR is a high-performance microcontroller designed for real-time control applications. It belongs to the TMS320F28000 family of microcontrollers, which are widely used in various industries due to their advanced features and capabilities.

Description:

The TMS320F28335ZAYAR is a 32-bit floating-point DSP (Digital Signal Processor) with a high-speed CPU and a rich set of peripherals. It is fabricated using a 90-nm CMOS process and operates at a core clock frequency of up to 150 MHz. The device features a high-performance CPU, advanced peripherals, and a rich set of communication interfaces, making it suitable for a wide range of applications.

Features:

1. 32-bit floating-point DSP with a high-speed CPU
2. Core clock frequency of up to 150 MHz
3. 256-KB on-chip program and data memory
4. 16-KB on-chip SARAM (Static Random Access Memory)
5. 16-bit timer modules, ePWM modules, and eCAP modules
6. Advanced communication interfaces, including UART, SPI, I2C, and CAN
7. Enhanced PI (Proportional-Integral) controller and dead-time generator
8. High-resolution ADC (Analog-to-Digital Converter) with up to 12-bit resolution
9. Flexible clock management system
10. Low-power modes to optimize power consumption

Applications:

The TMS320F28335ZAYAR microcontroller is suitable for a wide range of real-time control applications, including:

1. Motor control: Brushless DC (BLDC) motors, permanent magnet synchronous motors (PMSM), and induction motors
2. Power electronics: Battery management systems, power converters, and UPS (Uninterruptible Power Supply) systems
3. Automotive: Engine control, transmission control, and electric power steering systems
4. Industrial control: Servo drives, robotics, and process control systems
5. Renewable energy: Solar inverters, wind turbine control, and energy storage systems
6. Consumer electronics: Appliance control, smart grid devices, and home automation systems
7. Telecommunications: Modem control, line conditioning, and signal processing

In summary, the Texas Instruments TMS320F28335ZAYAR is a powerful and versatile microcontroller designed for real-time control applications. Its high-performance CPU, advanced peripherals, and communication interfaces make it suitable for a wide range of industries and applications.

TMS320F28335ZAYAR Documents

Download datasheets and manufacturer documentation for TMS320F28335ZAYAR

Datasheets :

TMS320F2833x, 2823x Datasheet
