Texas Instruments

TPA2005D1GQYR

Audio Amplifiers

TPA2005D1GQYR Description

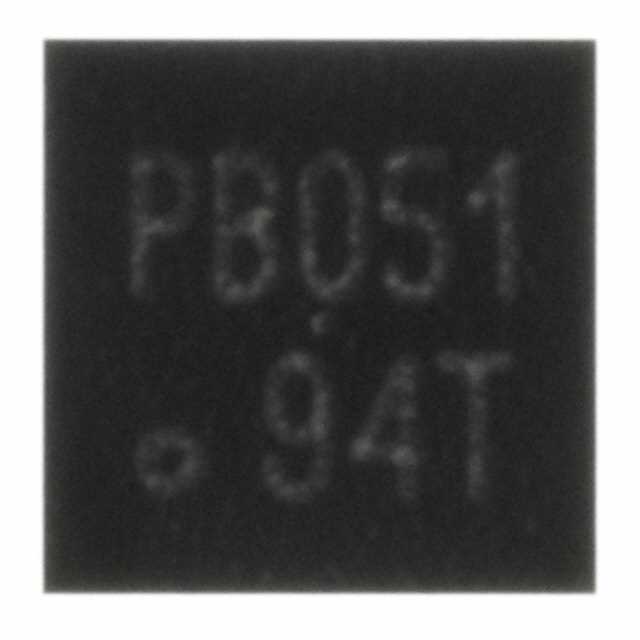

The TPA2005D1GQYR is a Class D audio amplifier designed and manufactured by Texas Instruments. This mono amplifier is capable of delivering a maximum output power of 1.45W per channel at an 8-Ohm load. With a supply voltage range of 2.5V to 5.5V, it is well-suited for low-voltage applications. The device is surface-mountable and comes in a 15-ball grid array (BGA) package, making it ideal for space-constrained designs. The TPA2005D1GQYR is classified as EAR99 and REACH unaffected, ensuring compliance with international trade and environmental regulations.

TPA2005D1GQYR Features

• Class D Architecture: The TPA2005D1GQYR employs a Class D topology, which offers high efficiency and low power consumption compared to traditional Class A/B amplifiers.
• 1.45W Output Power: This amplifier can deliver up to 1.45W of output power per channel at an 8-Ohm load, making it suitable for small to medium-sized audio applications.
• Wide Voltage Range: The 2.5V to 5.5V supply voltage range allows for compatibility with various power sources and low-voltage systems.
• Surface Mount Package: The 15-BGA package enables easy integration into surface-mount PCB designs, saving space and reducing component count.
• Low Moisture Sensitivity: With an MSL rating of 2 (1 year), the TPA2005D1GQYR is less susceptible to moisture-related damage, ensuring reliable performance in various environments.

TPA2005D1GQYR Applications

The TPA2005D1GQYR is ideal for a variety of audio applications, including:

1. Portable Audio Devices: Due to its low power consumption and compact form factor, this amplifier is well-suited for portable audio devices such as smartphones, tablets, and MP3 players.
2. Bluetooth Speakers: The TPA2005D1GQYR can be used in Bluetooth speakers to provide high-quality audio output while maintaining low power consumption.
3. Wearable Devices: Its small size and low power requirements make it suitable for wearable devices like smartwatches and fitness trackers with built-in audio capabilities.
4. IoT Devices: The TPA2005D1GQYR can be integrated into IoT devices that require audio output, such as smart home assistants and security systems.

Conclusion of TPA2005D1GQYR

The TPA2005D1GQYR is a versatile Class D audio amplifier that offers high efficiency, low power consumption, and a compact form factor. Its unique features, such as a wide voltage range and low moisture sensitivity, make it an ideal choice for a variety of audio applications, including portable devices, Bluetooth speakers, wearables, and IoT devices. While the product is currently classified as obsolete, it remains a reliable and cost-effective solution for designers looking to implement high-quality audio output in their projects.

TPA2005D1GQYR Documents

Download datasheets and manufacturer documentation for TPA2005D1GQYR

Datasheets :

TPA2005D1

PCN Obsolescence/ EOL :

EOL Mult Devices 30/Apr/2019

HTML Datasheet :

TPA2005D1
