Texas Instruments

TPS3840PL28DBVR

Supervisors

TPS3840PL28DBVR Description

The TPS3840PL28DBVR is a high-performance, single-channel power supply supervisor IC from Texas Instruments, designed to monitor and manage power supply systems effectively. This device is currently active and offers a reset timeout of 619ms, ensuring reliable operation in various applications. With a voltage threshold of 2.8V and the ability to monitor one voltage, it provides precise control over power supply conditions.

TPS3840PL28DBVR Features

• Voltage - Threshold: 2.8V
• Number of Voltages Monitored: 1
• Type: Power Supply Monitor
• Reset: Active Low
• Mounting Type: Surface Mount
• Package: Tape & Reel (TR)
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• ECCN: EAR99
• HTSUS: 8542.39.0001
• Base Product Number: TPS3840

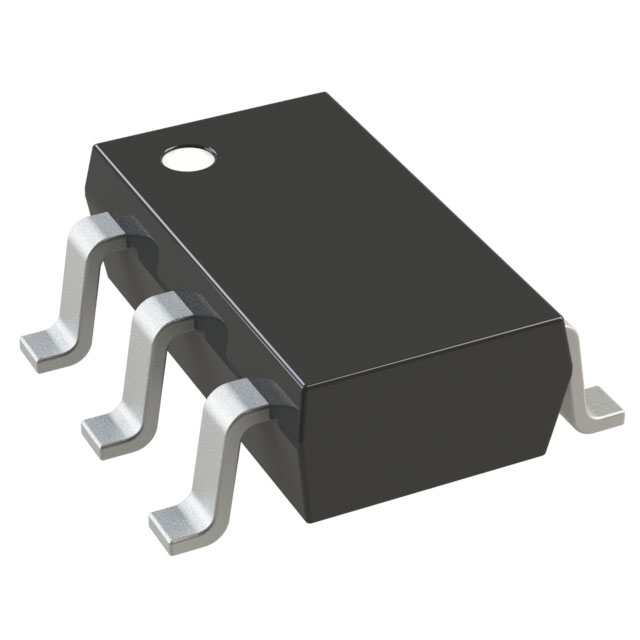

Unique features of the TPS3840PL28DBVR include its active low reset, which allows for easy integration into existing systems, and its unlimited moisture sensitivity level, making it suitable for harsh environments. The device's small SOT23-5 package enables compact designs and space-saving solutions.

TPS3840PL28DBVR Applications

The TPS3840PL28DBVR is ideal for a wide range of applications, including:

1. Industrial Control Systems: Its reliable voltage monitoring capabilities make it suitable for ensuring stable power supply in industrial environments.
2. Automotive Electronics: The device's robustness and low reset timeout make it perfect for automotive applications where reliability is crucial.
3. Telecommunications Equipment: The TPS3840PL28DBVR can be used to monitor power supply conditions in telecommunications equipment, ensuring uninterrupted operation.
4. Medical Devices: Its precision and reliability make it suitable for use in medical devices where power supply stability is critical.

Conclusion of TPS3840PL28DBVR

The TPS3840PL28DBVR is a versatile and reliable power supply monitor IC from Texas Instruments. Its unique features, such as active low reset and unlimited moisture sensitivity level, combined with its small form factor and RoHS compliance, make it an excellent choice for a wide range of applications. Whether used in industrial control systems, automotive electronics, telecommunications equipment, or medical devices, the TPS3840PL28DBVR ensures stable and reliable power supply monitoring.

TPS3840PL28DBVR Documents

Download datasheets and manufacturer documentation for TPS3840PL28DBVR

PCN Assembly/Origin :

Assembly Material 13/Jul/2023

Datasheets :

TPS3840

PCN Packaging :

Additional Binary Codes 03/Oct/2022
